Vision controllers

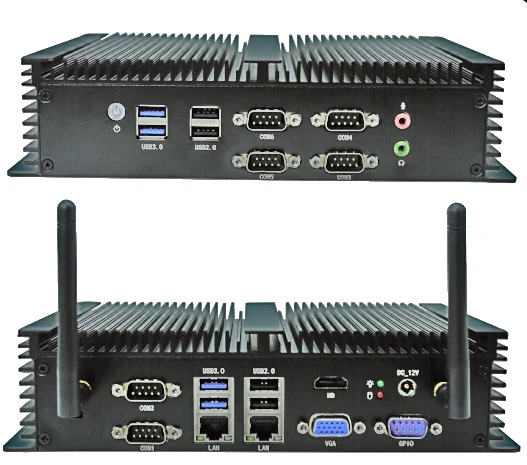

Fanless industrial PC, 4578U CPU, barebone (LS-SYGK1X4578U)
Model LS-SYGK1X4578U
Fanless industrial PC, 4578U CPU, barebone. Fanless aluminium industrial computer to run machine-vision software next to the line; memory: 2xSO-DIMM DDR3L Slot, max 16GB DDR3L; storage: 1xMSATA3.0 SSD and 1xSATA3.0 HDD. Barebone: memory, storage and Wi-Fi are quoted with it.
Features
- 6xRS232(3 line), COM1 COM2 support set to RS485/422
- Support AWAL, Wake On LAN, RTC
- Without fan, Fanless system
- One embedded Micro SIM card slot
- Silver colour Aluminum alloy case
- Can be mounted on the wall by optional long screws
Specifications
| Model | LS-SYGK1X4578U |
|---|---|
| Processor | 4578U CPU (per model code) |
| Configuration | Barebone: no memory, no storage and no Wi-Fi module fitted; add them to your quote request |
| I/O | HDMI, VGA, 4USB2.0, 2LED, 2RS232/422/485 COM, 2Wi-Fi, 4USB3.0, 2RJ45 Giga LAN, MIC, SPK, 4RS232 COM, GPIO, Switch On/Off, DC IN, 2WiFi holes |
| Memory | 2xSO-DIMM DDR3L Slot, max 16GB DDR3L |
| Storage | 1xMSATA3.0 SSD and 1xSATA3.0 HDD |
| Wireless | Inbuilt 3G/4G/WiFi&Bluetooth with Dual antennas(optional) |
| Operating system | Windows / Linux |
| Dimensions | 212.5 x 149.5 x 52 mm |
| Weight | 2.5 kg per set |
| In the box | Mini PC device, Power Adapter, dual wifi antennas(optional) |
| Certification | CE, FCC, RoHS (manufacturer) |
Applications
- Machine-vision inspection PC
- Line-side data collection and control
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the LS-SYGK1 fanless industrial PCs series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-SYGK1X4278U | 4278U CPU | Price on request | 2 in stock | View |
