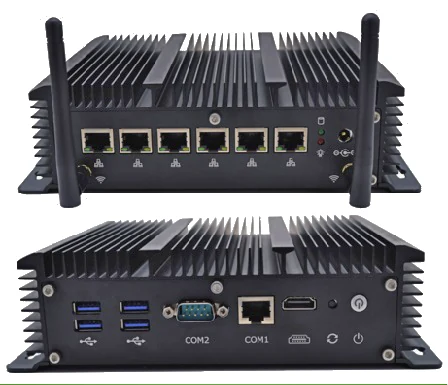

Fanless industrial PC, Intel Core i3-7167U, barebone (LS-SYG7X7167U)
Model LS-SYG7X7167U
Fanless industrial PC, Intel Core i3-7167U, barebone. Fanless aluminium industrial computer to run machine-vision software next to the line; memory: 1xSO-DIMM DDR3L Slot, max 16GB DDR3L; storage: 1xMSATA3.0 SSD and 1xSATA3.0 HDD/SSD. Barebone: memory, storage and Wi-Fi are quoted with it.
Features
- Support Watchdog, Auto power on, RTC, PXE boot
- Without fan, Fanless system
- One embedded SIM card slot
- Black Aluminum alloy case
- Can be mounted on the wall by optional long screws
Specifications
| Model | LS-SYG7X7167U |
|---|---|
| Processor | Intel Core i3-7167U |
| Processor details | Onboard Intel KABYLAKE 14nm CPU Intel Core i3-7167U 2.8GHz Dual Cores Four Threads 3MB cache TDP 28W Intel Iris Plus Graphics 650 |
| Configuration | Barebone: no memory, no storage and no Wi-Fi module fitted; add them to your quote request |
| I/O | HDMI, 4USB2.0, 4USB3.0, MIC, SPK, 6*Intel i225V 2.5G LAN, 2COM, 2 LED Switch On/Off, DC IN, 2WiFi holes |
| Memory | 1xSO-DIMM DDR3L Slot, max 16GB DDR3L |
| Storage | 1xMSATA3.0 SSD and 1xSATA3.0 HDD/SSD |
| Wireless | Inbuilt 3G/4G/WiFi&Bluetooth with Dual antennas(optional) |
| Operating system | Windows / Linux |
| Dimensions | 209 x 150 x 57 mm |
| Weight | 2.5 kg per set |
| In the box | Mini PC device, Power Adapter, dual wifi antennas(optional) |
| Certification | CE, FCC, RoHS (manufacturer) |
Applications
- Machine-vision inspection PC
- Line-side data collection and control
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the LS-SYG7 fanless industrial PCs series
