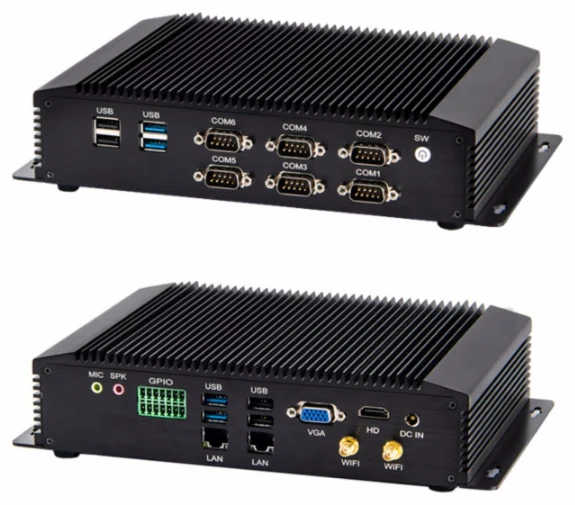

Fanless industrial PC, Intel Core i7-4500U, barebone (LS-SYG5X4500U)
Model LS-SYG5X4500U
Fanless industrial PC, Intel Core i7-4500U, barebone. Fanless aluminium industrial computer to run machine-vision software next to the line; storage: 1xMSATA3.0 SSD and 1xSATA3.0 HDD. Barebone: memory, storage and Wi-Fi are quoted with it.
Features
- COM1 COM2 can change to RS232/422/485 from BIOS
- Support Watchdog, Auto power on, RTC Wake Up, Non-disk boot, State lamp interface, trigger switch(wafer 1*2)
- Without fan, Fanless system
- One embedded Micro SIM card slot
- Black colour Aluminum alloy case
- Can be mounted on the wall by optional long screws
Specifications
| Model | LS-SYG5X4500U |
|---|---|
| Processor | Intel Core i7-4500U |
| Processor details | Intel Core i7 4500U 1.8GHz, max 3.0GHz CPU |
| Configuration | Barebone: no memory, no storage and no Wi-Fi module fitted; add them to your quote request |
| I/O | HDMI, VGA, 6RS232 COM, 4USB2.0, 4USB3.0, GPIO, 2RJ45 Giga LAN, MIC, SPK, Switch On/Off, DC IN, 2Wi-Fi holes, RAM: 1xSO-DIMM DDR3L Slot, max 8GB DDR3L |
| Storage | 1xMSATA3.0 SSD and 1xSATA3.0 HDD |
| Wireless | Inbuilt 3G/4G/WiFi&Bluetooth with Dual antennas(optional) |
| Operating system | Windows / Linux |
| Dimensions | 230 x 175 x 50 mm |
| Weight | 2 kg per set |
| In the box | Mini PC device, Power Adapter, dual wifi antennas(optional) |
| Certification | CE, FCC, RoHS (manufacturer) |
Applications
- Machine-vision inspection PC
- Line-side data collection and control
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the LS-SYG5 fanless industrial PCs series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-SYG5X4200U | Intel Core i5-4200U | Price on request | 5 in stock | View |
