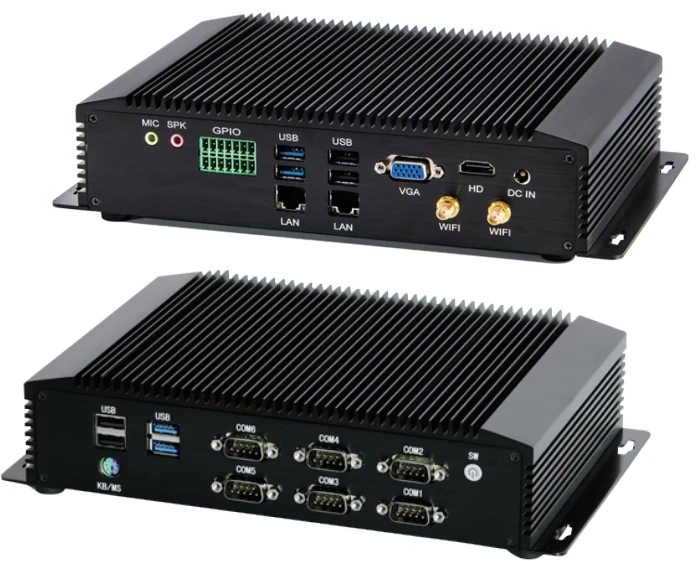

Fanless industrial PC, Intel Core i3-7020U, barebone (LS-SYG5AX7020U)
Model LS-SYG5AX7020U
Fanless industrial PC, Intel Core i3-7020U, barebone. Fanless aluminium industrial computer to run machine-vision software next to the line; memory: 1xSO-DIMM DDR4 Slot, max 32GB DDR4; storage: 1xMSATA3.0 SSD and 1xSATA3.0 HDD. Barebone: memory, storage and Wi-Fi are quoted with it.
Features
- COM1 COM2 can change to RS232/422/485 from BIOS
- Support Watchdog, Auto power on, RTC Wake Up, Non-disk boot, State lamp interface, trigger switch(wafer 1*2)
- Without fan, Fanless system
- One embedded Micro SIM card slot
- Black colour Aluminum alloy case
- Can be mounted on the wall by optional long screws
Specifications
| Model | LS-SYG5AX7020U |
|---|---|
| Processor | Intel Core i3-7020U |
| Processor details | Onboard Intel Comet Lake Refresh Intel Core i3-7020U Processor, 3M Cache, 2.30GHz up to 1.00GHz(Turbo boost Technology) Quad Cores 4 Threads TDP 15W Intel HD Graphics 620 |
| Configuration | Barebone: no memory, no storage and no Wi-Fi module fitted; add them to your quote request |
| I/O | HDMI, VGA, 6RS232 COM, 4USB2.0, 4USB3.0, GPIO, 2RJ45 Giga LAN, MIC, SPK, Switch On/Off, DC IN, 2Wi-Fi holes, PS2 |
| Memory | 1xSO-DIMM DDR4 Slot, max 32GB DDR4 |
| Storage | 1xMSATA3.0 SSD and 1xSATA3.0 HDD |
| Wireless | Inbuilt 3G/4G/WiFi&Bluetooth with Dual antennas(optional) |
| Operating system | Windows / Linux |
| Certification | CE, FCC, RoHS (manufacturer) |
| Shipping weight | 2.50 kg |
Applications
- Machine-vision inspection PC
- Line-side data collection and control
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the LS-SYG5A fanless industrial PCs series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-SYG5AX6006U | Intel Core i3-6006U | Price on request | 4 in stock | View |
| LS-SYG5AX7200U | Intel Core i5-7200U | Price on request | 3 in stock | View |
| LS-SYG5AX8250U | Intel Core i5-8250U | Price on request | 3 in stock | View |
| LS-SYG5AX8550U | Intel Core i7-8550U | Price on request | 4 in stock | View |
