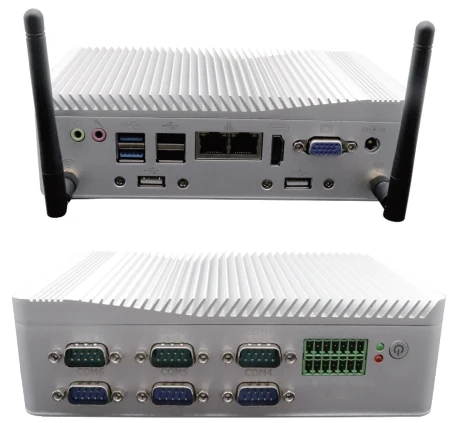

Fanless industrial PC, J1900 CPU, barebone (LS-SYG3HXJ1900)
Model LS-SYG3HXJ1900
Fanless industrial PC, J1900 CPU, barebone. Fanless aluminium industrial computer to run machine-vision software next to the line; memory: 1xSO-DIMM DDR3L Slot, max 8GB DDR3L; storage: 1xMSATA3.0 SSD and 1xSATA3.0 HDD. Barebone: memory, storage and Wi-Fi are quoted with it.
Features
- COM5, COM6 can change to RS232/422/485 from BIOS
- Support Watchdog, Auto power on, RTC, PXE boot, State lamp interface, trigger switch
- Without fan, Fanless system
- One embedded Micro SIM card slot
- Silver colour Aluminum alloy case
Specifications
| Model | LS-SYG3HXJ1900 |
|---|---|
| Processor | J1900 CPU (per model code) |
| Configuration | Barebone: no memory, no storage and no Wi-Fi module fitted; add them to your quote request |
| I/O | HDMI, VGA, 2LED(red for power, green for hard disk), 6COM, MIC, SPK, 2USB3.0, 4USB3.0, 2RJ45 Giga LAN, Switch On/Off, DC IN, 2WiFi holes |
| Memory | 1xSO-DIMM DDR3L Slot, max 8GB DDR3L |
| Storage | 1xMSATA3.0 SSD and 1xSATA3.0 HDD |
| Wireless | Inbuilt 3G/4G/WiFi&Bluetooth with Dual antennas(optional) |
| Operating system | Windows / Linux |
| Dimensions | 180 x 120 x 52.5 mm |
| Weight | 1.5 kg per set |
| In the box | Mini PC device, Power Adapter, dual wifi antennas(optional) |
| Certification | CE, FCC, RoHS (manufacturer) |
Applications
- Machine-vision inspection PC
- Line-side data collection and control
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the LS-SYG3H fanless industrial PCs series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-SYG3HX6157U | Intel Core i3-6157U | Price on request | 4 in stock | View |
