Vision controllers

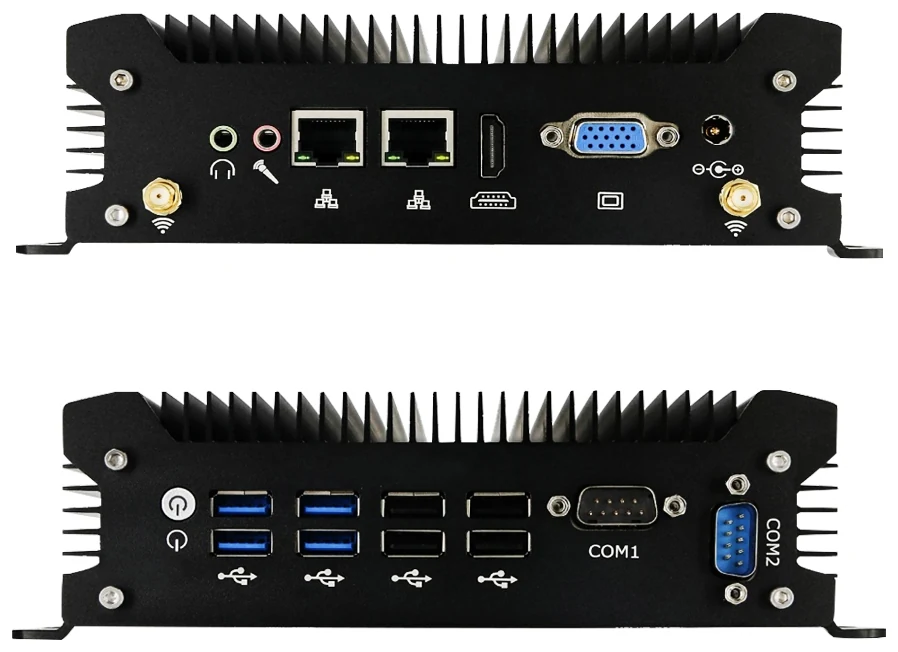

Fanless industrial PC, 6157U CPU, barebone (LS-SYG12X6157U)
Model LS-SYG12X6157U
Fanless industrial PC, 6157U CPU, barebone. Fanless aluminium industrial computer to run machine-vision software next to the line. Barebone: memory, storage and Wi-Fi are quoted with it.
Features
- Support VGA + HDMI 1.4 dual display output synchronously
- One embedded SIM card slot onboard for 3G/4G Wi-Fi
- Full Aluminum Alloy Black colour shell for heat dissipation, Exquisite production craft on outside design
- Fanless system without cooling fan, fit for industrial grade field, work as long as 24 hours
- Low consumption TDP only 28W and can be mounted on the wall
- Support AWAL, Wake On LAN, Watchdog, RTC functions
Specifications
| Model | LS-SYG12X6157U |
|---|---|
| Processor | 6157U CPU (per model code) |
| Configuration | Barebone: no memory, no storage and no Wi-Fi module fitted; add them to your quote request |
| Dimensions | 193.9 x 127 x 57.2 mm |
| Weight | 1.5 kg per set |
| In the box | Mini PC device, Power Adapter, dual wifi antennas(optional) |
| Certification | CE, FCC, RoHS (manufacturer) |
Applications
- Machine-vision inspection PC
- Line-side data collection and control
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the LS-SYG12 fanless industrial PCs series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-SYG12X4278U | 4278U CPU | Price on request | 3 in stock | View |
| LS-SYG12X4578U | 4578U CPU | Price on request | 2 in stock | View |
| LS-SYG12X7287U | 7287U CPU | Price on request | 4 in stock | View |
