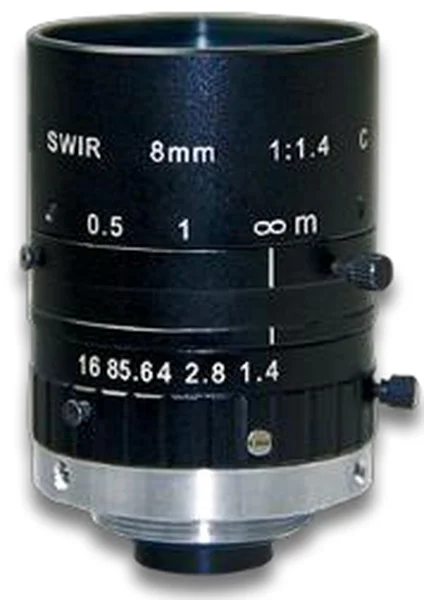

8 mm, 2/3", 5 MP, C-mount SWIR Lens (LS-SWIR0814H-5M)
Model LS-SWIR0814H-5M
8 mm, 2/3", 5 MP, C-mount SWIR Lens. 8 mm F1.4 SWIR lens for 2/3" sensors, 900-1700 nm, C-mount. At a glance: focal length 8 mm; format 2/3"; resolution 60 lp/mm; aperture F1.4 Manual iris; mount C.
Features
- Wavelength 900~1700 nm
Specifications
| Model | LS-SWIR0814H-5M |
|---|---|
| Format | 2/3" |
| Resolution | 60 lp/mm |
| Focal length | 8 mm |
| Aperture | F1.4 Manual iris |
| Angle of view (2/3") | 61 x 52 x 43 deg |
| Angle of view (1/2") | 53.1 x 44 x 33.5 deg |
| Angle of view (1/3") | 41 x 33.4 x 21.4 deg |
| M.O.D. | 0.2 m |
| Distortion | <-1.2% |
| Filter thread | M35.5 x 0.5 |
| Back focus | 9.91 mm |
| Size | dia. 38.5 x 50.4 mm |
| Mount | C |
| Weight | 156 g |
| Wavelength | 900~1700nm |
| Operating temperature | 10°~+50° |
| Shipping weight (estimated) | 0.32 kg |
Applications
- Electrics, rescue, science, sorting, military (SWIR section)
