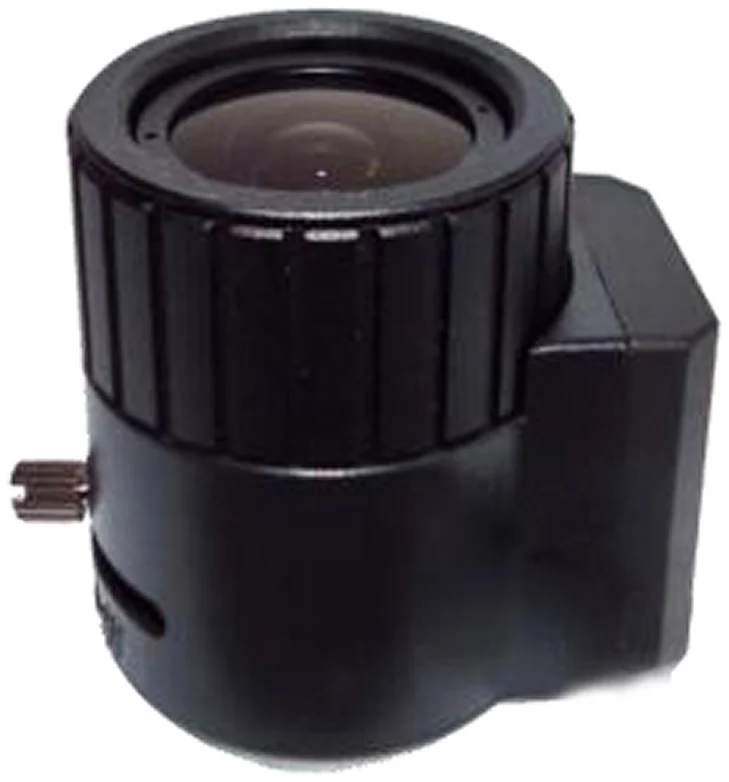

2.8-12 mm, 1/1.8", 8 MP, CS-mount Varifocal CCTV Lens (LS-SVD2812HIR-8M)
Model LS-SVD2812HIR-8M
2.8-12 mm, 1/1.8", 8 MP, CS-mount Varifocal CCTV Lens. 2.8-12 mm 1/1.8" 8 MP CS-mount IR varifocal lens, DC iris. At a glance: focal length 2.8-12 mm; format 1/1.8"; resolution 8 Megapixel; aperture F1.4 DC Iris; mount CS.
Features
- 8 megapixel high definition
- 1/1.8" large sensor format
- CS mount
Specifications
| Model | LS-SVD2812HIR-8M |
|---|---|
| Resolution | 8 Megapixel |
| IR correction | IR |
| Format | 1/1.8" |
| Focal length | 2.8-12 mm |
| Aperture | F1.4 DC Iris |
| Angle of view (1/1.8", DxHxV) | W 156 x 117 x 81 | T 51 x 42 x 31 deg |
| Angle of view (1/2.5", DxHxV) | W 117 x 90 x 65 | T 42 x 34 x 25 deg |
| Distortion | 77% (W) ~ -6.5% (T) |
| CRA | 10.92°~11.25° |
| M.O.D. | 0.3 m |
| Size | dia. 32.6 x 39.2 mm |
| B.F.L. | 7.51 mm |
| Mechanical back focal length | 8.35 mm |
| Mount | CS |
| Weight | 55 g |
| Notes | 20°~+60° |
| Shipping weight (estimated) | 0.18 kg |
Applications
- Rooms
- Corridors
- Banks
- Building surveillance
