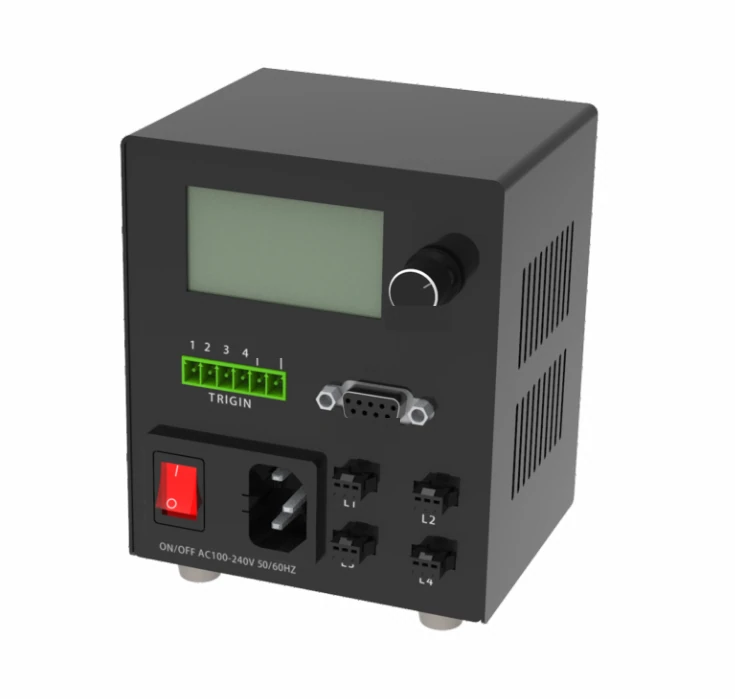

STU overdrive controller, 4 ch (LS-STU-15048-4)
Model LS-STU-15048-4
The STU overdrive controller can instantly increase lighting brightness by over 3 times for standard 24V light. Built-in DEBUG mode for adjusting the test object and camera focus during testing. With WORK mode, when triggered, instantly increase lighting brightness.
Features
- Large screen design, with clear parameters and simple operation.
- Internal DEBUG and WORK modes.
- Built-in high-speed isolated optocoupler, the strobe duration 10-999 us when external trigger.
- With serial ports RS232/RS485, remotely controlled.
- Optional of DIN rail mounting and bottom mounting holes.
Specifications
| Model | LS-STU-15048-4 |
|---|---|
| Input voltage | AC 100-240V |
| Output voltage | 48V |
| Work (external trigger) - emission duration | 10-990us |
| Work (external trigger) - brightness setting | configured with a relative pulse width ratio of 10-100% |
| Work (external trigger) - emission delay | 8us |
| Work (external trigger) - trigger input voltage | DC5-24V |
| Debug mode (internal trigger) | Periods of 1.42ms or 3us optional |
| Overload protection | 110% (Restore after power-off and restart) |
| Weight | 1KG |
| Standard accessories | AC power cord |
| Suitable light | 4CH with power 60W Max |
| Channels | 4 |
| Control | display / RS232 / RS485, DEBUG and WORK modes |
Applications
- Suitable for 24V input light, increasing brightness by over 3 times
