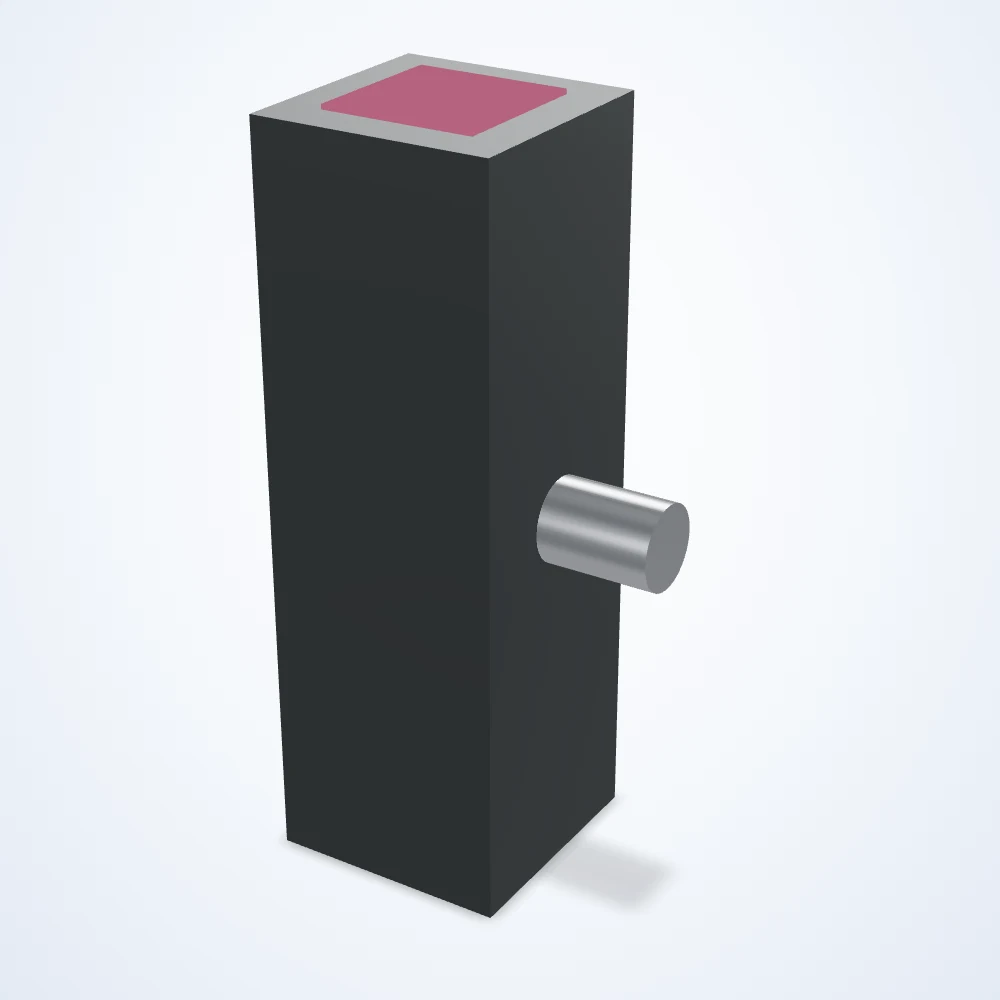

Rendered illustration: the actual product may differ in appearance.
Spot lights
Spot light, 22 x 22 mm lit area (LS-SPT-0123)
Model LS-SPT-0123
Compact spot light for small fields of view and high intensity at a distance. Lit area 22 x 22 mm; 24 VDC supply; connection: 5 pin m12 male a-coded. Choose colour, lens / beam angle, version below (32 configurations) and request a quote.
Specifications
| Model | LS-SPT-0123 |
|---|---|
| Lit length (mm) | 22 |
| Lit width (mm) | 22 |
| Length (mm) | 34.5 |
| Width (mm) | 34.5 |
| Height (mm) | 106.6 |
| Voltage | 24 VDC |
| Connector | 5 Pin M12 Male A-Coded |
| Connection at light | Connectorized |
| Driver included | Included |
| Driver location | Internal |
| Intensity control | Analog Voltage |
| Operating modes | Constant On, Constant On – Dimmable, Overcurrent Strobe, Overcurrent Strobe - Dimmable, Strobe, Strobe – Dimmable |
| Strobe trigger input | NPN Trigger, PNP Trigger |
| Operating temperature | -10 to 40 °C |
| IP rating | IP65 |
| Housing | Aluminum |
| Mounting | Through Holes |
| Collimated | Not Collimated |
| Daisy chain | No |
| Diffused | Not Diffused |
| Direct connect | No |
| Driver nomenclature | SVL Multi-Drive |
| Max overcurrent strobe current | 1250 mA |
| Max overcurrent strobe input power | 30 W |
| Maximum constant on current (ma) | 200 |
| Maximum current (overcurrent strobe) (ma) | 1250 |
| Maximum duty cycle (%) | 100 |
| Maximum input power constant on (w) | 6 |
| Maximum input power overcurrent strobe (w) | 30 |
| Maximum overcurrent strobe duration (ms) | 50 |
| Maximum overcurrent strobe duty cycle (%) | 10 |
| Maximum overcurrent strobe frequency (hz) | 4000 |
| Maximum overcurrent strobe latency (us) | 6 |
| Maximum strobe current (ma) | 200 |
| Maximum strobe duration (ms) | No Limit |
| Maximum strobe duty cycle (%) | 100 |
| Maximum strobe frequency (hz) | 4000 |
| Maximum strobe input power (w) | 6 |
| Maximum strobe latency (us) | 10 |
| Minimum overcurrent strobe duration (us) | 30 |
| Minimum strobe duration (us) | 30 |
| NPN trigger current (ma) | 12 |
| NPN trigger voltage (v) | < 1 VDC |
| PNP trigger current (ma) | 13.4 |
| PNP trigger voltage (v) | 4-24 VDC |
| Polarized | Not Polarized |
| Storage temperature | -20 to 70 °C |
| Compliance | CE, IEC 62471, RoHS |
