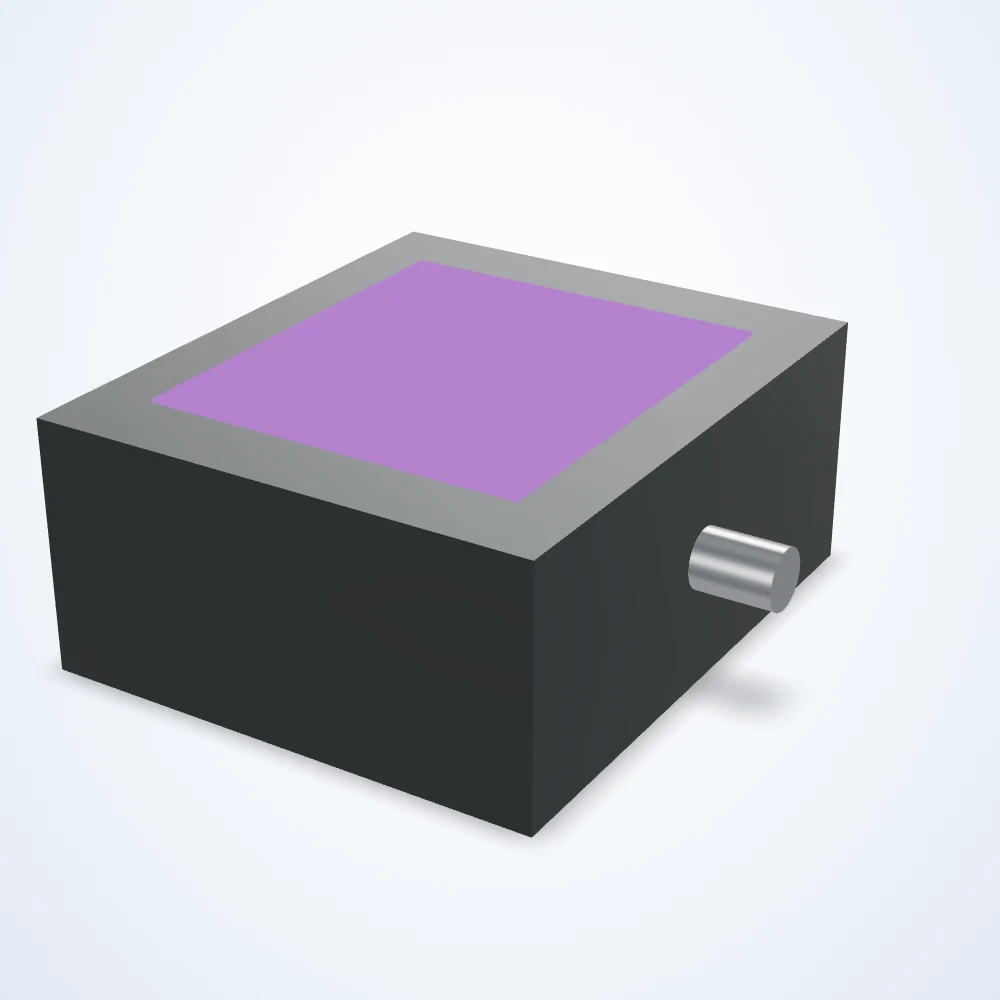

Rendered illustration: the actual product may differ in appearance.
Spot lights
101.6 x 117.5 mm spot light (LS-SPT-0120)
Model LS-SPT-0120
101.6 x 117.5 mm spot light. Lit area 76.2 x 85.7 mm. Connection: 5 Pin M12 Male A-Coded. Available in 40 configurations (color, lens angle, polarized); choose one below and request a quote.
Specifications
| Model | LS-SPT-0120 |
|---|---|
| Active Length (mm) | 76.2 |
| Active Width (mm) | 85.7 |
| Collimated | Not Collimated |
| Compliances | CE, IEC 62471, RoHS |
| Connector Type | 5 Pin M12 Male A-Coded |
| Connectorized At Light | Connectorized |
| Daisy Chain | No |
| Direct Connect | No |
| Driver Included | Included |
| Driver Location | Internal |
| Driver Nomenclature | SVL Smart Driver |
| Height (mm) | 50.8 |
| Housing Material | Stainless Steel |
| IP Rating | IP68 |
| Intensity Adjustment Type | Analog Voltage, Integrated Potentiometer |
| Length (mm) | 101.6 |
| Maximum Constant On Current (mA) | 400 |
| Maximum Duty Cycle (%) | 100 |
| Maximum Input Power Constant On (W) | 9.6 |
| Maximum Operating Temperature (C) | 40 |
| Maximum Operating Temperature (F) | 104 |
| Maximum Storage Temperature (C) | 40 |
| Maximum Storage Temperature (F) | 104 |
| Minimum Operating Temperature (C) | -10 |
| Minimum Operating Temperature (F) | 14 |
| Minimum Storage Temperature (C) | -10 |
| Minimum Storage Temperature (F) | 14 |
| Mounting Method | Through Holes |
| NPN Trigger Current (mA) | 14 |
| NPN Trigger Voltage (V) | < 1 VDC |
| Operation Modes | Constant On, Constant On – Dimmable |
| PNP Trigger Current (mA) | 17.6 |
| PNP Trigger Voltage (V) | 4-24 VDC |
| Product Weight (Kg) | 0.76 |
| Product Weight (Lbs) | 1.68 |
| Strobe Trigger Input | NPN Trigger, PNP Trigger |
| Voltage | 24 VDC |
| Width (mm) | 117.5 |
