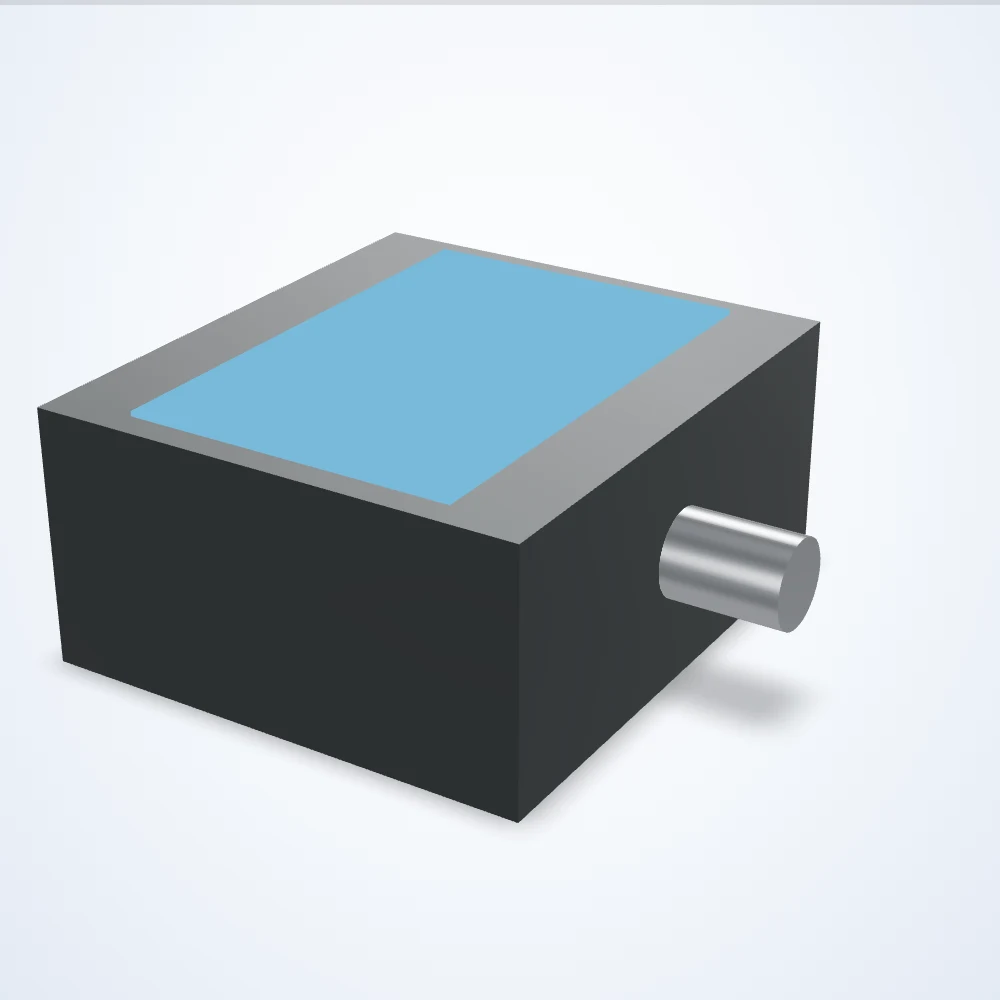

Rendered illustration: the actual product may differ in appearance.
Spot lights
Spot light, 46 x 69 mm lit area (LS-SPT-0119)
Model LS-SPT-0119
Compact spot light for small fields of view and high intensity at a distance. Lit area 46 x 69 mm; 24 VDC supply; connection: 5 pin m12 male a-coded. Choose colour, lens / beam angle below (18 configurations) and request a quote.
Specifications
| Model | LS-SPT-0119 |
|---|---|
| Lit length (mm) | 46 |
| Lit width (mm) | 69 |
| Length (mm) | 69 |
| Width (mm) | 77 |
| Height (mm) | 35.7 |
| Voltage | 24 VDC |
| Connector | 5 Pin M12 Male A-Coded |
| Connection at light | Connectorized |
| Driver included | Included |
| Driver location | Internal |
| Intensity control | Analog Voltage |
| Operating modes | Constant On |
| Strobe trigger input | NPN Trigger, PNP Trigger |
| Operating temperature | -18 to 40 °C |
| IP rating | IP50 |
| Housing | Plastic |
| Mounting | Through Holes |
| Collimated | Not Collimated |
| Daisy chain | No |
| Diffused | Not Diffused |
| Direct connect | No |
| Driver nomenclature | SVL Smart Driver |
| Maximum constant on current (ma) | 375 |
| Maximum duty cycle (%) | 100 |
| Maximum input power constant on (w) | 9 |
| NPN trigger current (ma) | 15 |
| NPN trigger voltage (v) | < 1 VDC |
| PNP trigger current (ma) | 20 |
| PNP trigger voltage (v) | 4-24 VDC |
| Polarized | Not Polarized |
| Storage temperature | -18 to 40 °C |
| Compliance | CE, IEC 62471, RoHS |
