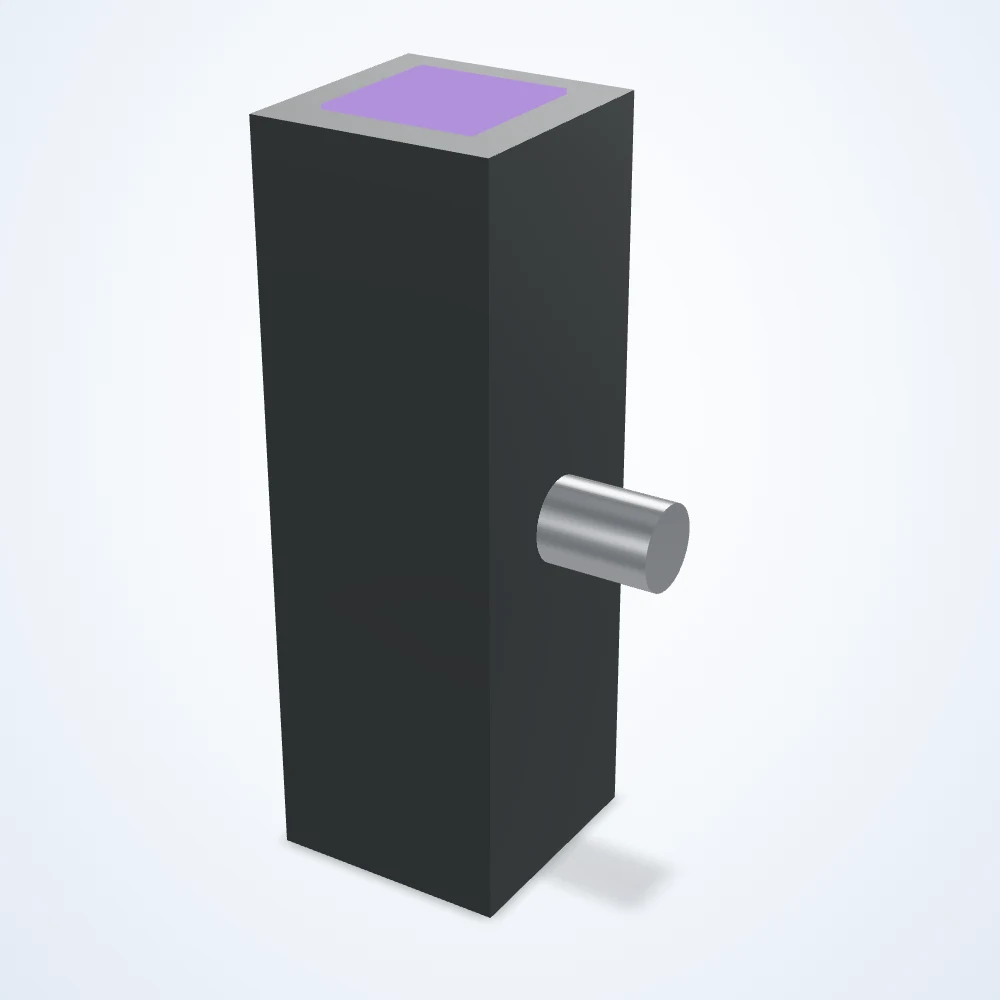

Rendered illustration: the actual product may differ in appearance.
Spot lights
34.5 x 34.5 mm spot light (LS-SPT-0115)
Model LS-SPT-0115
34.5 x 34.5 mm spot light. Lit area 22 x 22 mm. Connection: 5 Pin M12 Male A-Coded. Available in 25 configurations (color, lens angle); choose one below and request a quote.
Specifications
| Model | LS-SPT-0115 |
|---|---|
| Active Length (mm) | 22 |
| Active Width (mm) | 22 |
| Collimated | Not Collimated |
| Compliances | CE, IEC 62471, RoHS |
| Connector Type | 5 Pin M12 Male A-Coded |
| Connectorized At Light | Connectorized |
| Daisy Chain | No |
| Direct Connect | No |
| Driver Included | Included |
| Driver Location | Internal |
| Driver Nomenclature | SVL OverDrive Driver |
| Height (mm) | 106.6 |
| Housing Material | Stainless Steel |
| IP Rating | IP68 |
| Intensity Adjustment Type | Analog Voltage |
| Length (mm) | 34.5 |
| Maximum Current (Overcurrent Strobe) (mA) | 1250 |
| Maximum Duty Cycle (%) | 10 |
| Maximum Input Power Overcurrent Strobe (W) | 30 |
| Maximum Operating Temperature (C) | 40 |
| Maximum Operating Temperature (F) | 104 |
| Maximum Overcurrent Strobe Duration (ms) | 50 |
| Maximum Overcurrent Strobe Duty Cycle (%) | 10 |
| Maximum Overcurrent Strobe Frequency (Hz) | 4000 |
| Maximum Overcurrent Strobe Latency (us) | 6 |
| Maximum Storage Temperature (C) | 70 |
| Maximum Storage Temperature (F) | 158 |
| Minimum Operating Temperature (C) | -10 |
| Minimum Operating Temperature (F) | 14 |
| Minimum Overcurrent Strobe Duration (us) | 10 |
| Minimum Storage Temperature (C) | -20 |
| Minimum Storage Temperature (F) | -4 |
| Mounting Method | Through Holes |
| NPN Trigger Current (mA) | 14 |
| NPN Trigger Voltage (V) | < 1 VDC |
| Operation Modes | Overcurrent Strobe, Overcurrent Strobe - Dimmable |
| PNP Trigger Current (mA) | 20 |
| PNP Trigger Voltage (V) | 4-24 VDC |
| Polarized | Not Polarized |
| Product Weight (Kg) | 0.27 |
| Product Weight (Lbs) | 0.59 |
| Strobe Trigger Input | NPN Trigger, PNP Trigger |
| Voltage | 24 VDC |
| Width (mm) | 34.5 |
