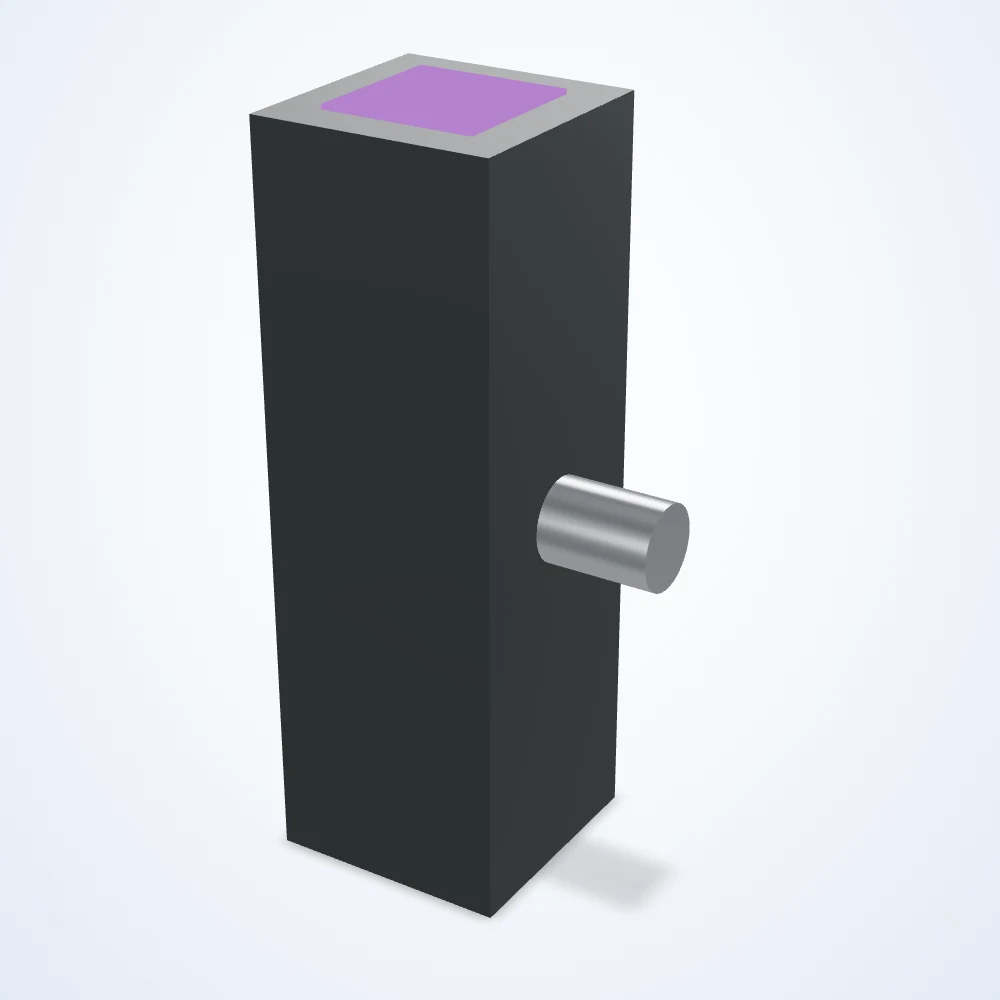

Rendered illustration: the actual product may differ in appearance.
Spot lights
Spot light (LS-SPT-0113)
Model LS-SPT-0113
Spot light. Connection: 5 Pin M12 Male A-Coded. Available in 32 configurations (active length (mm), active width (mm), color, height (mm)); choose one below and request a quote.
Specifications
| Model | LS-SPT-0113 |
|---|---|
| Collimated | Not Collimated |
| Compliances | CE, IEC 62471, RoHS |
| Connector Type | 5 Pin M12 Male A-Coded |
| Connectorized At Light | Connectorized |
| Daisy Chain | No |
| Direct Connect | No |
| Driver Included | Included |
| Driver Location | Internal |
| Driver Nomenclature | SVL OverDrive Driver |
| Housing Material | Aluminum |
| Intensity Adjustment Type | Analog Voltage |
| Maximum Current (Overcurrent Strobe) (mA) | 1250 |
| Maximum Duty Cycle (%) | 10 |
| Maximum Input Power Overcurrent Strobe (W) | 30 |
| Maximum Overcurrent Strobe Duration (ms) | 50 |
| Maximum Overcurrent Strobe Duty Cycle (%) | 10 |
| Maximum Overcurrent Strobe Frequency (Hz) | 4000 |
| Maximum Overcurrent Strobe Latency (us) | 6 |
| Minimum Overcurrent Strobe Duration (us) | 10 |
| Mounting Method | Through Holes |
| NPN Trigger Current (mA) | 14 |
| NPN Trigger Voltage (V) | < 1 VDC |
| Operation Modes | Overcurrent Strobe, Overcurrent Strobe - Dimmable |
| PNP Trigger Voltage (V) | 4-24 VDC |
| Polarized | Not Polarized |
| Product Weight (Kg) | 0.32 |
| Product Weight (Lbs) | 0.71 |
| Strobe Trigger Input | NPN Trigger, PNP Trigger |
| Voltage | 24 VDC |
