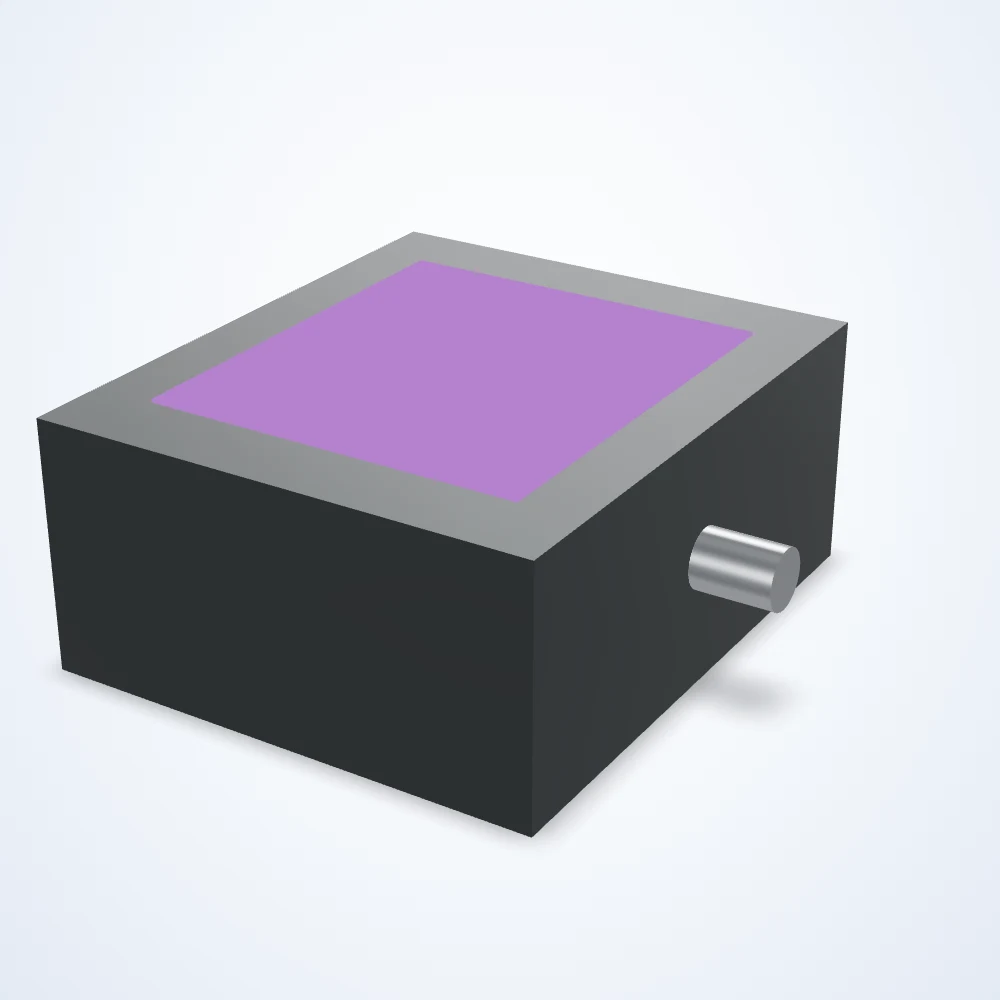

Spot light, 76.2 x 85.7 mm lit area (LS-SPT-0112)

Name: Spot light, 76.2 x 85.7 mm lit area (LS-SPT-0112)
Brand: LumaSpec Vision
SKU: LS-SPT-0112

Model LS-SPT-0112

Compact spot light for small fields of view and high intensity at a distance. Lit area 76.2 x 85.7 mm; 24 VDC supply; connection: 5 pin m12 male a-coded. Choose colour, lens / beam angle below (23 configurations) and request a quote.

Datasheet (PDF) - LS-SPT-0112

Specifications

Model	LS-SPT-0112
Lit length (mm)	76.2
Lit width (mm)	85.7
Length (mm)	101.6
Width (mm)	117.5
Height (mm)	50.8
Voltage	24 VDC
Connector	5 Pin M12 Male A-Coded
Connection at light	Connectorized
Driver included	Sold Separately
Driver location	Internal
Intensity control	Analog Voltage, SmartVisionLink
Operating modes	Overcurrent Strobe, Overcurrent Strobe - Dimmable
Strobe trigger input	NPN Trigger, PNP Trigger
Operating temperature	-10 to 40 °C
IP rating	IP68
Housing	Stainless Steel
Mounting	Through Holes
Collimated	Not Collimated
Daisy chain	No
Diffused	Not Diffused
Direct connect	No
Driver nomenclature	SVL OverDrive Driver
Max overcurrent strobe current	3000 mA
Max overcurrent strobe input power	72 W
Maximum current (overcurrent strobe) (ma)	3000
Maximum duty cycle (%)	10
Maximum input power overcurrent strobe (w)	72
Maximum overcurrent strobe duration (ms)	50
Maximum overcurrent strobe duty cycle (%)	10
Maximum overcurrent strobe frequency (hz)	4000
Maximum overcurrent strobe latency (us)	6
Minimum overcurrent strobe duration (us)	1
NPN trigger current (ma)	14
NPN trigger voltage (v)	< 1 VDC
PNP trigger current (ma)	17.6
PNP trigger voltage (v)	4-24 VDC
Polarized	Not Polarized
Storage temperature	-10 to 40 °C
Compliance	CE, IEC 62471, RoHS
