Rendered illustration: the actual product may differ in appearance.
Spot lights

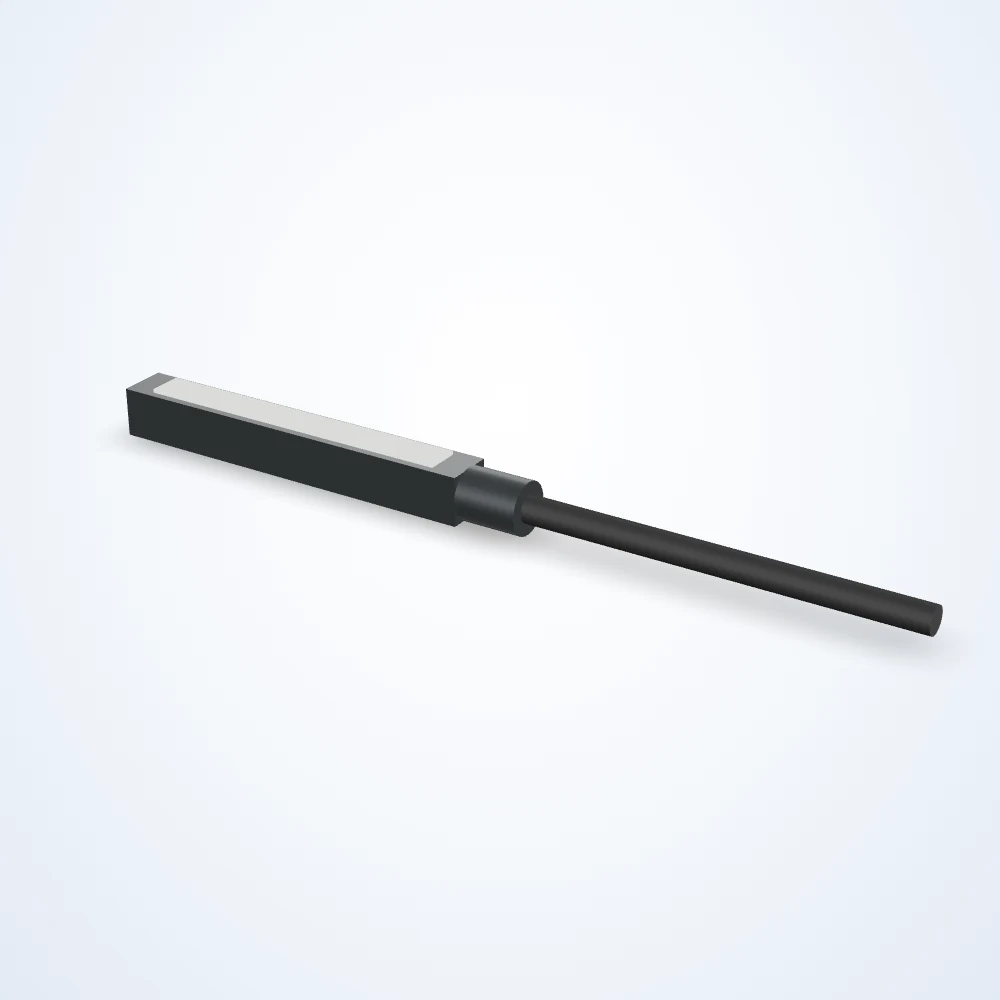

Spot light, 73.7 x 9.4 mm (LS-SPT-0102)
Model LS-SPT-0102
Compact spot light for small fields of view and high intensity at a distance. 24 VDC supply; connection: flying leads.
Specifications
| Model | LS-SPT-0102 |
|---|---|
| Colour | WHITE |
| Lit diameter (mm) | 5.9 |
| Length (mm) | 73.7 |
| Width (mm) | 9.4 |
| Height (mm) | 9.4 |
| Voltage | 24 VDC |
| Connector | Flying Leads |
| Connection at light | Hardwired |
| Cable length (mm) | 2000 |
| Driver included | Included |
| Driver location | In Line |
| Intensity control | Analog Voltage |
| Operating modes | Constant On |
| Strobe trigger input | PNP Trigger |
| Operating temperature | up to 60 °C |
| IP rating | IP67 |
| Housing | Aluminum |
| Mounting | Tapped Holes |
| Collimated | Not Collimated |
| Daisy chain | No |
| Diffused | Not Diffused |
| Direct connect | No |
| Max overcurrent strobe current | 8000 mA |
| Max overcurrent strobe input power | 125 W |
| Maximum constant on current (ma) | 300 |
| Maximum current (overcurrent strobe) (ma) | 8000 |
| Maximum duty cycle (%) | 100 |
| Maximum input power constant on (w) | 7.2 |
| Maximum input power overcurrent strobe (w) | 125 |
| Maximum overcurrent strobe frequency (hz) | 2000 |
| Maximum overcurrent strobe latency (us) | 60 |
| Minimum overcurrent strobe duration (us) | 30 |
| NPN trigger voltage (v) | < 1 VDC |
| PNP trigger current (ma) | 5 |
| PNP trigger voltage (v) | 2.5-30 VDC |
| Polarized | Not Polarized |
| Wavelength | WHITE |
| Compliance | CE |
