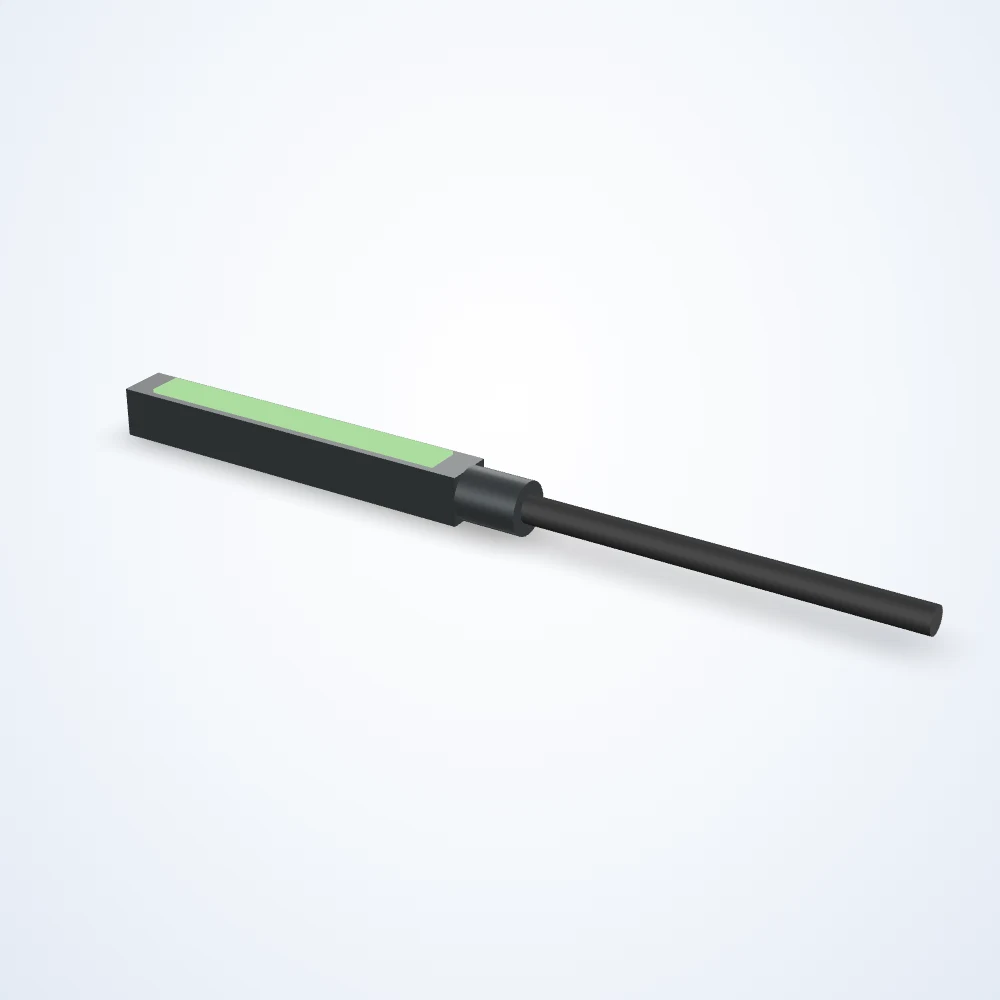

Spot light, 73.7 x 9.4 mm, compliance CE (LS-SPT-0082)

Rendered illustration: the actual product may differ in appearance.

Spot lights

Spot light, 73.7 x 9.4 mm, compliance CE (LS-SPT-0082)

Model LS-SPT-0082

Compact spot light for small fields of view and high intensity at a distance. 24 VDC supply; connection: flying leads.

Price on request
Built to order: ships in about 4-5 weeks

Build a system with this light → Matching lens, light, controller and cables, checked for fit

  • Secure checkout by ShopifyCard, PayPal, Venmo, Shop Pay or Google Pay
  • 90-day returnsUnused items; free return label in the US · Returns policy
  • Tracked UPS or DHL shippingExact cost shown at checkout · Shipping policy
  • Questions about fit?Contact us; we reply within one business day
Datasheet (PDF) - LS-SPT-0082

Specifications

ModelLS-SPT-0082
Colour530nm Green
Lit diameter (mm)5.9
Length (mm)73.7
Width (mm)9.4
Height (mm)9.4
Voltage24 VDC
ConnectorFlying Leads
Connection at lightHardwired
Cable length (mm)2000
Driver includedIncluded
Driver locationIn Line
Intensity controlAnalog Voltage
Operating modesConstant On
Strobe trigger inputConstant On Only
Operating temperatureup to 60 °C
IP ratingIP67
HousingAluminum
MountingTapped Holes
CollimatedNot Collimated
Daisy chainNo
DiffusedNot Diffused
Direct connectNo
Maximum constant on current (ma)300
Maximum duty cycle (%)100
Maximum input power constant on (w)7.2
PolarizedNot Polarized
Wavelength530nm Green
ComplianceCE
Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Configure a system Selection guide

Other sizes in the Spot light series, 9.4 mm high, Flying Leads series

ModelSizePriceAvailabilityLink
LS-SPT-007073.7 x 9.4 mm Price on request 4 in stockView
LS-SPT-007173.7 x 9.4 mm Price on request 4 in stockView
LS-SPT-007273.7 x 9.4 mm Price on request 2 in stockView
LS-SPT-007373.7 x 9.4 mm Price on request 5 in stockView
LS-SPT-007473.7 x 9.4 mm Price on request 5 in stockView
LS-SPT-007573.7 x 9.4 mm Price on request 3 in stockView
LS-SPT-007673.7 x 9.4 mm Price on request 4 in stockView
LS-SPT-007773.7 x 9.4 mm Price on request 3 in stockView
LS-SPT-007873.7 x 9.4 mm Price on request 2 in stockView
LS-SPT-007973.7 x 9.4 mm Price on request 4 in stockView
LS-SPT-008073.7 x 9.4 mm Price on request 5 in stockView
LS-SPT-008173.7 x 9.4 mm Price on request 4 in stockView
LS-SPT-008373.7 x 9.4 mm Price on request 3 in stockView
LS-SPT-008473.7 x 9.4 mm Price on request 5 in stockView
LS-SPT-008573.7 x 9.4 mm Price on request 3 in stockView
LS-SPT-008673.7 x 9.4 mm Price on request 3 in stockView
LS-SPT-008773.7 x 9.4 mm Price on request 5 in stockView
LS-SPT-008873.7 x 9.4 mm Price on request 4 in stockView
LS-SPT-008973.7 x 9.4 mm Price on request 3 in stockView
LS-SPT-009073.7 x 9.4 mm Price on request 3 in stockView
LS-SPT-009173.7 x 9.4 mm Price on request 4 in stockView
LS-SPT-009273.7 x 9.4 mm Price on request 2 in stockView
LS-SPT-009373.7 x 9.4 mm Price on request 4 in stockView
LS-SPT-009473.7 x 9.4 mm Price on request 3 in stockView

See all 48 models in the Spot light series, 9.4 mm high, Flying Leads series
