Spot lights

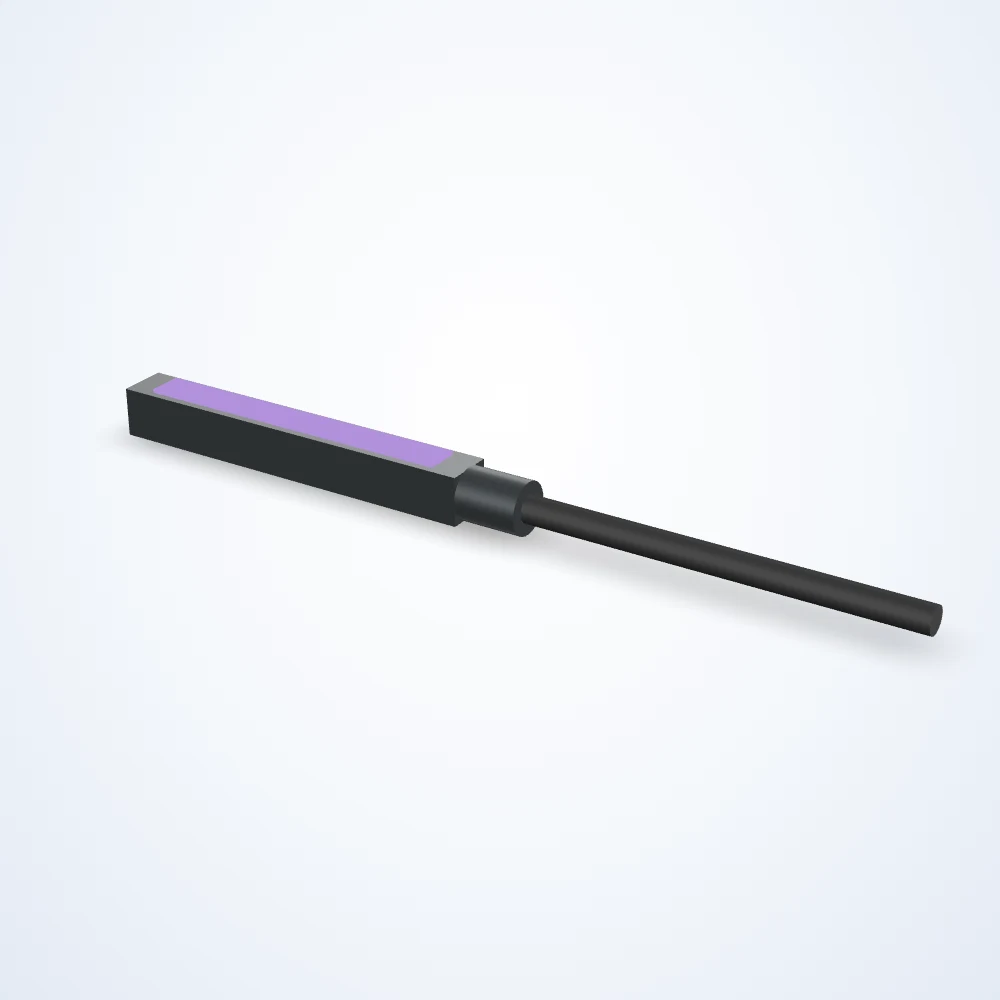

73.7 x 9.4 mm spot light (LS-SPT-0068)
Model LS-SPT-0068
73.7 x 9.4 mm spot light. Colour: 405nm Violet. Connection: Flying Leads.
Specifications
| Model | LS-SPT-0068 |
|---|---|
| Active Diameter (mm) | 5.9 |
| Cable Length (mm) | 2000 |
| Collimated | Not Collimated |
| Color | 405nm Violet |
| Compliances | CE |
| Connector Type | Flying Leads |
| Connectorized At Light | Hardwired |
| Daisy Chain | No |
| Direct Connect | No |
| Driver Included | Included |
| Driver Location | In Line |
| Height (mm) | 9.4 |
| Housing Material | Aluminum |
| IP Rating | IP67 |
| Intensity Adjustment Type | Analog Voltage |
| Length (mm) | 73.7 |
| Maximum Constant On Current (mA) | 300 |
| Maximum Current (Overcurrent Strobe) (mA) | 8000 |
| Maximum Duty Cycle (%) | 100 |
| Maximum Input Power Constant On (W) | 7.2 |
| Maximum Input Power Overcurrent Strobe (W) | 125 |
| Maximum Operating Temperature (C) | 60 |
| Maximum Operating Temperature (F) | 140 |
| Maximum Overcurrent Strobe Frequency (Hz) | 2000 |
| Maximum Overcurrent Strobe Latency (us) | 60 |
| Minimum Operating Temperature (F) | 32 |
| Minimum Overcurrent Strobe Duration (us) | 30 |
| Mounting Method | Tapped Holes |
| NPN Trigger Voltage (V) | < 1 VDC |
| Operation Modes | Constant On |
| PNP Trigger Current (mA) | 5 |
| PNP Trigger Voltage (V) | 2.5-30 VDC |
| Polarized | Not Polarized |
| Product Weight (Kg) | 0.13 |
| Product Weight (Lbs) | 0.29 |
| Strobe Trigger Input | PNP Trigger |
| Voltage | 24 VDC |
| Width (mm) | 9.4 |
