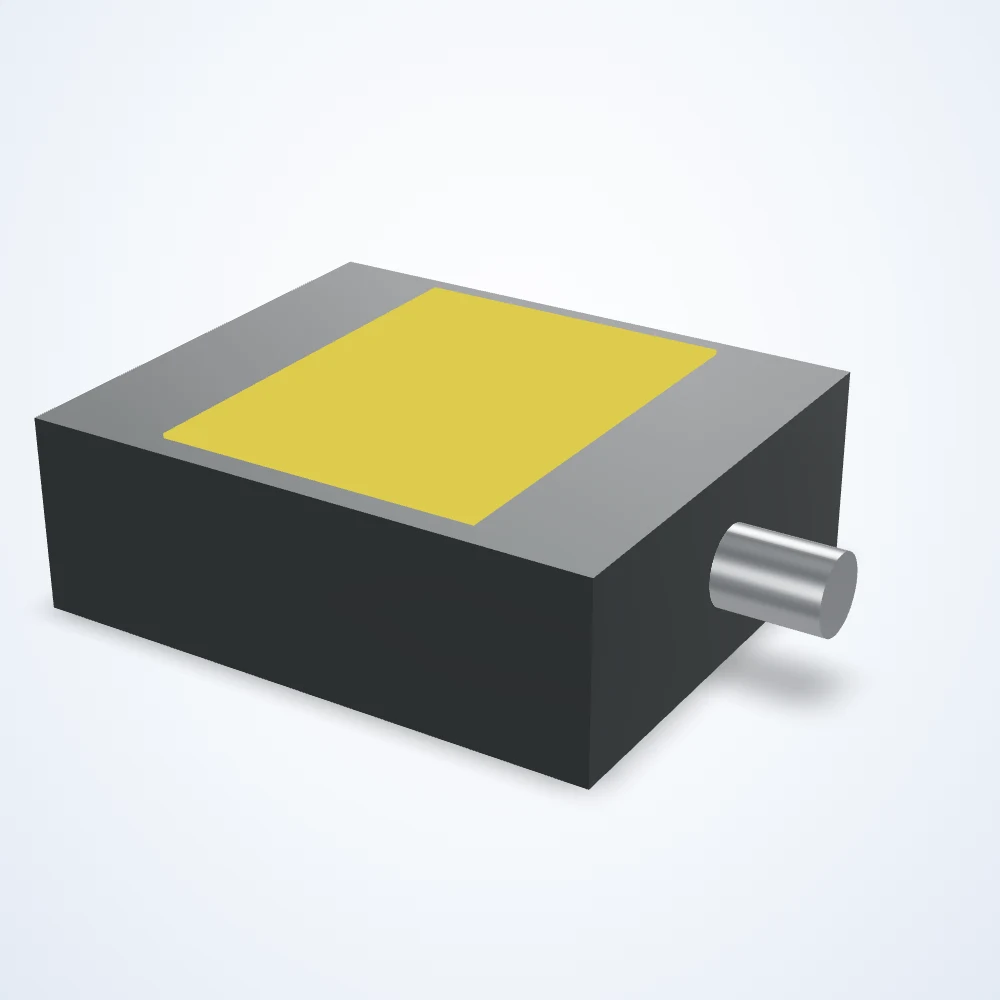

Rendered illustration: the actual product may differ in appearance.
Spot lights
Spot light, 49.9 x 66.6 mm lit area (LS-SPT-0017)
Model LS-SPT-0017
Compact spot light for small fields of view and high intensity at a distance. Lit area 49.9 x 66.6 mm; 24 VDC supply; connection: 5 pin m12 male a-coded.
Specifications
| Model | LS-SPT-0017 |
|---|---|
| Colour | 590nm Amber |
| Lens / beam angle | 21 Degree |
| Lit length (mm) | 49.9 |
| Lit width (mm) | 66.6 |
| Length (mm) | 89 |
| Width (mm) | 75 |
| Height (mm) | 29.9 |
| Voltage | 24 VDC |
| Connector | 5 Pin M12 Male A-Coded |
| Connection at light | Connectorized |
| Cable length (mm) | 2000 |
| Driver included | Included |
| Driver location | Internal |
| Intensity control | Analog Voltage |
| Operating modes | Constant On |
| Strobe trigger input | PNP Trigger |
| Operating temperature | up to 60 °C |
| IP rating | IP67 |
| Housing | Aluminum |
| Mounting | Tapped Holes |
| Collimated | Not Collimated |
| Daisy chain | No |
| Diffused | Not Diffused |
| Direct connect | No |
| Max overcurrent strobe current | 1350 mA |
| Max overcurrent strobe input power | 6 W |
| Maximum constant on current (ma) | 270 |
| Maximum current (overcurrent strobe) (ma) | 1350 |
| Maximum duty cycle (%) | 100 |
| Maximum input power constant on (w) | 6.5 |
| Maximum input power overcurrent strobe (w) | 6 |
| Maximum overcurrent strobe duration (ms) | 5 |
| Maximum overcurrent strobe latency (us) | 10 |
| NPN trigger voltage (v) | < 1 VDC |
| PNP trigger voltage (v) | 4-24 VDC |
| Polarized | Not Polarized |
| Wavelength | 590nm Amber |
| Compliance | CE |
