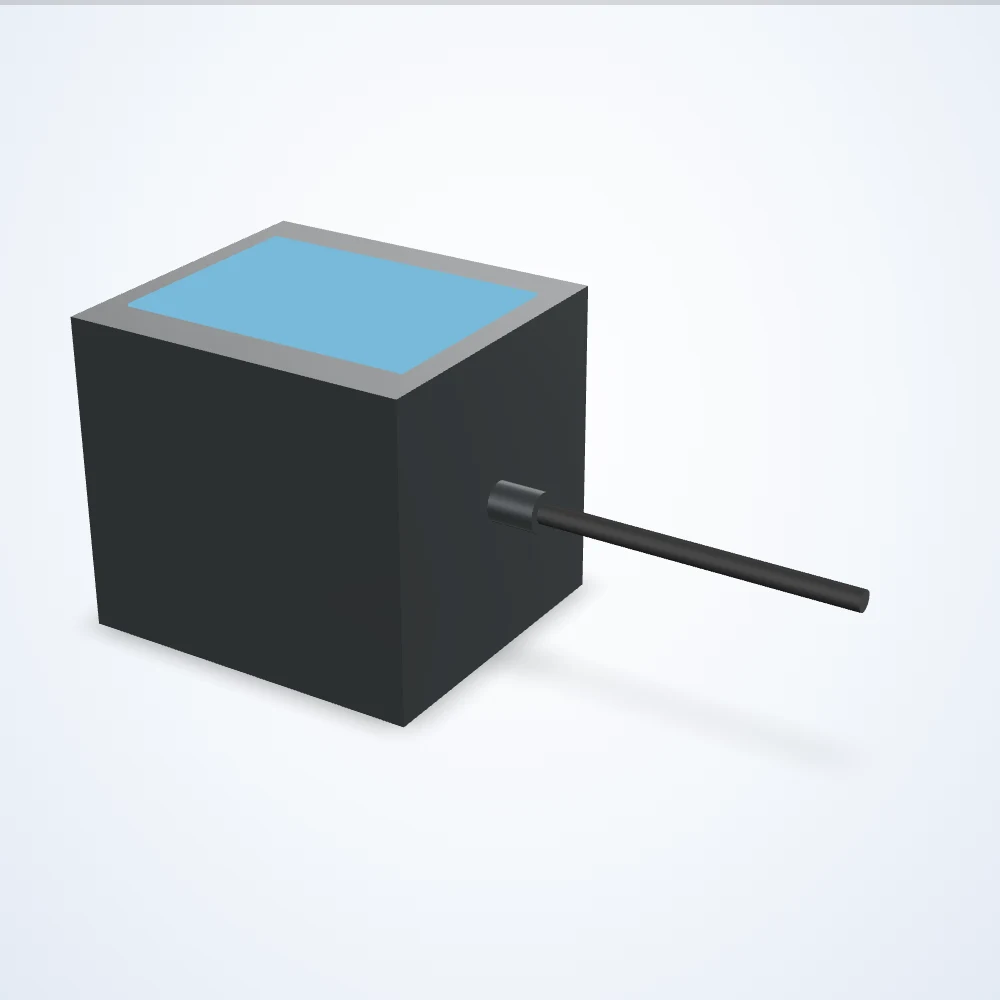

91.1 x 81 mm spot light (LS-SPT-0010)

Name: 91.1 x 81 mm spot light (LS-SPT-0010)
Brand: LumaSpec Vision
SKU: LS-SPT-0010

Model LS-SPT-0010

91.1 x 81 mm spot light. Connection: Flying Leads. Available in 88 configurations (color, driver included, driver location, driver nomenclature); choose one below and request a quote.

Price on request

Ships in 2-3 weeks

ColorDriver IncludedDriver LocationDriver NomenclatureIntensity Adjustment TypeLens AngleMaximum Constant On Current (mA)Maximum Current (Overcurrent Strobe) (mA)Maximum Input Power Constant On (W)Maximum Input Power Overcurrent Strobe (W)Maximum Overcurrent Strobe Frequency (Hz)Maximum Overcurrent Strobe Latency (us)Minimum Overcurrent Strobe Duration (us)NPN Trigger Voltage (V)Operation ModesPNP Trigger Current (mA)PNP Trigger Voltage (V)Strobe Trigger Input

Configuration LS-SPT-0010-01 of 88

Build a system with this light → Matching lens, light, controller and cables, checked for fit

Secure checkout by ShopifyCard, PayPal, Venmo, Shop Pay or Google Pay
90-day returnsUnused items; free return label in the US · Returns policy
Tracked UPS or DHL shippingExact cost shown at checkout · Shipping policy
Questions about fit?Contact us; we reply within one business day

Datasheet (PDF) - LS-SPT-0010

Specifications

Model	LS-SPT-0010
Active Diameter (mm)	68
Cable Length (mm)	2000
Collimated	Not Collimated
Compliances	CE, IEC 62471, RoHS
Connector Type	Flying Leads
Connectorized At Light	Hardwired
Daisy Chain	No
Direct Connect	No
Height (mm)	81
Housing Material	Aluminum
IP Rating	IP67
Length (mm)	91.1
Maximum Duty Cycle (%)	100
Maximum Operating Temperature (C)	60
Maximum Operating Temperature (F)	140
Minimum Operating Temperature (F)	32
Mounting Method	Tapped Holes
Polarized	Not Polarized
Product Weight (Kg)	0.58
Product Weight (Lbs)	1.28
Voltage	24 VDC
Width (mm)	81

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Configure a system Selection guide
