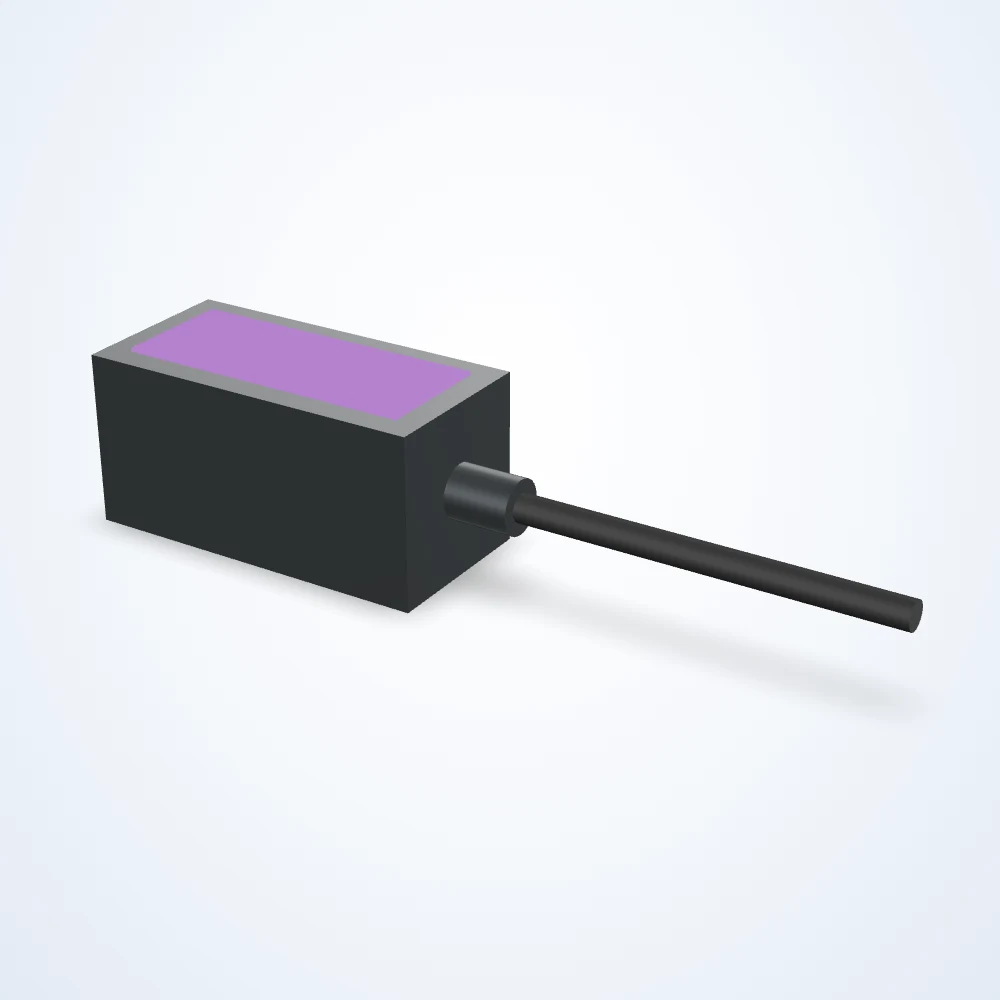

Rendered illustration: the actual product may differ in appearance.
Spot lights
Spot light, 65.3 x 31.8 mm (LS-SPT-0006)
Model LS-SPT-0006
Compact spot light for small fields of view and high intensity at a distance. 24 VDC supply; connection: flying leads. Choose colour, lens / beam angle, driver included, driver location, intensity control below (144 configurations) and request a quote.
Specifications
| Model | LS-SPT-0006 |
|---|---|
| Lit diameter (mm) | 21.2 |
| Length (mm) | 65.3 |
| Width (mm) | 31.8 |
| Height (mm) | 31.8 |
| Voltage | 24 VDC |
| Connector | Flying Leads |
| Connection at light | Hardwired |
| Cable length (mm) | 2000 |
| Operating temperature | up to 60 °C |
| IP rating | IP67 |
| Housing | Aluminum |
| Mounting | Tapped Holes |
| Collimated | Not Collimated |
| Daisy chain | No |
| Diffused | Not Diffused |
| Direct connect | No |
| Driver nomenclature | 24V / iCS2 - IC / iCS4 - I4 (by configuration) |
| Maximum constant on current (ma) | 90 / 230 (by configuration) |
| Maximum current (overcurrent strobe) (ma) | 8000 (by configuration) |
| Maximum duty cycle (%) | 100 |
| Maximum input power constant on (w) | 2.2 / 5.5 (by configuration) |
| Maximum input power overcurrent strobe (w) | 150 (by configuration) |
| Maximum overcurrent strobe frequency (hz) | 2000 (by configuration) |
| Maximum overcurrent strobe latency (us) | 20 (by configuration) |
| NPN trigger voltage (v) | < 1 VDC (by configuration) |
| PNP trigger current (ma) | 5 (by configuration) |
| PNP trigger voltage (v) | 2.5-30 VDC (by configuration) |
| Polarized | Not Polarized |
| Compliance | CE, IEC 62471, RoHS |
