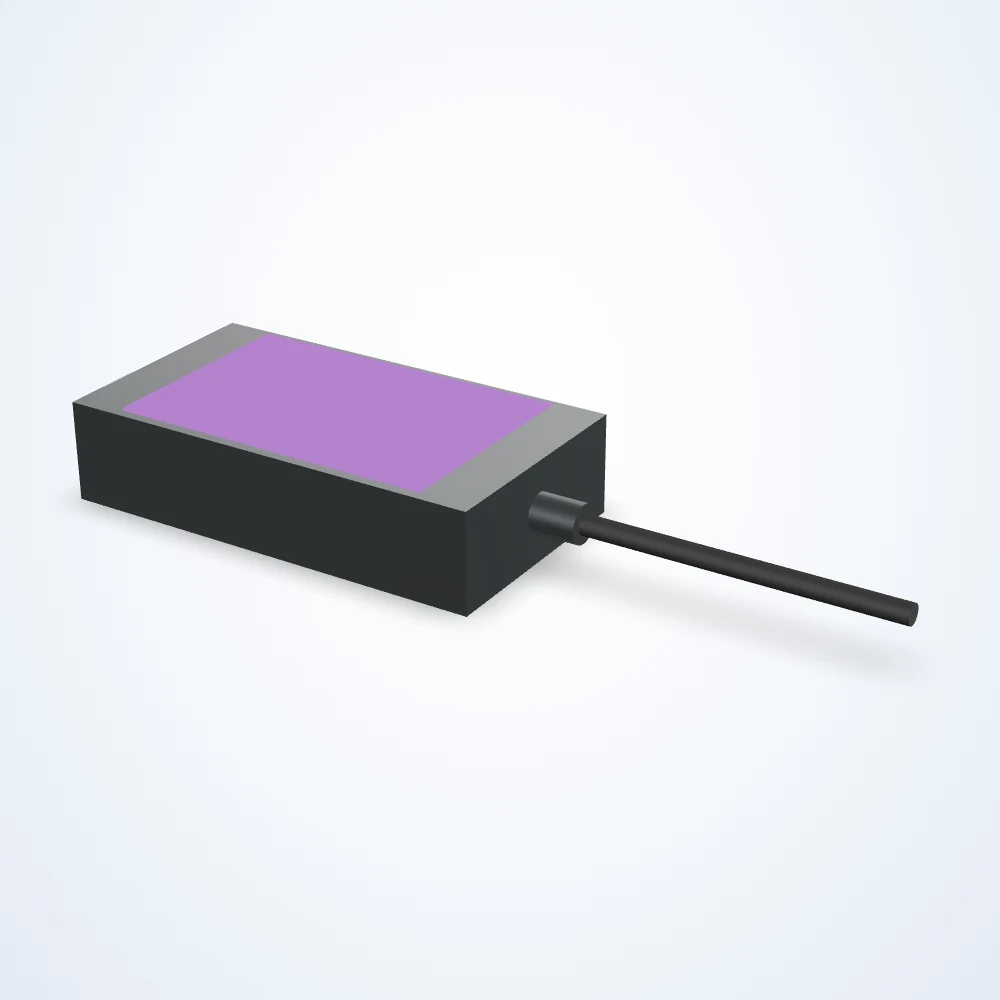

Rendered illustration: the actual product may differ in appearance.
Spot lights
Spot light, 85.7 x 56.8 mm lit area (LS-SPT-0001)
Model LS-SPT-0001
Compact spot light for small fields of view and high intensity at a distance. Lit area 85.7 x 56.8 mm; 24 VDC supply; connection: flying leads. Choose colour, lens / beam angle, driver included, driver location, intensity control below (192 configurations) and request a quote.
Specifications
| Model | LS-SPT-0001 |
|---|---|
| Lit length (mm) | 85.7 |
| Lit width (mm) | 56.8 |
| Length (mm) | 113.2 |
| Width (mm) | 62 |
| Height (mm) | 26 |
| Voltage | 24 VDC |
| Connector | Flying Leads |
| Connection at light | Hardwired |
| Cable length (mm) | 2000 |
| Operating temperature | up to 60 °C |
| IP rating | IP67 |
| Housing | Aluminum |
| Mounting | Tapped Holes |
| Collimated | Not Collimated |
| Daisy chain | No |
| Diffused | Not Diffused |
| Direct connect | No |
| Driver nomenclature | 24V / iCS2 - IC (by configuration) |
| Maximum constant on current (ma) | 360 / 480 (by configuration) |
| Maximum current (overcurrent strobe) (ma) | 8000 (by configuration) |
| Maximum duty cycle (%) | 100 |
| Maximum input power constant on (w) | 8.6 / 11.5 (by configuration) |
| Maximum input power overcurrent strobe (w) | 125 (by configuration) |
| Maximum overcurrent strobe frequency (hz) | 2000 (by configuration) |
| Maximum overcurrent strobe latency (us) | 60 (by configuration) |
| Minimum overcurrent strobe duration (us) | 30 (by configuration) |
| NPN trigger voltage (v) | < 1 VDC (by configuration) |
| PNP trigger current (ma) | 5 (by configuration) |
| PNP trigger voltage (v) | 2.5-30 VDC (by configuration) |
| Polarized | Not Polarized |
| Compliance | CE, IEC 62471, RoHS |
