Shadowless lights

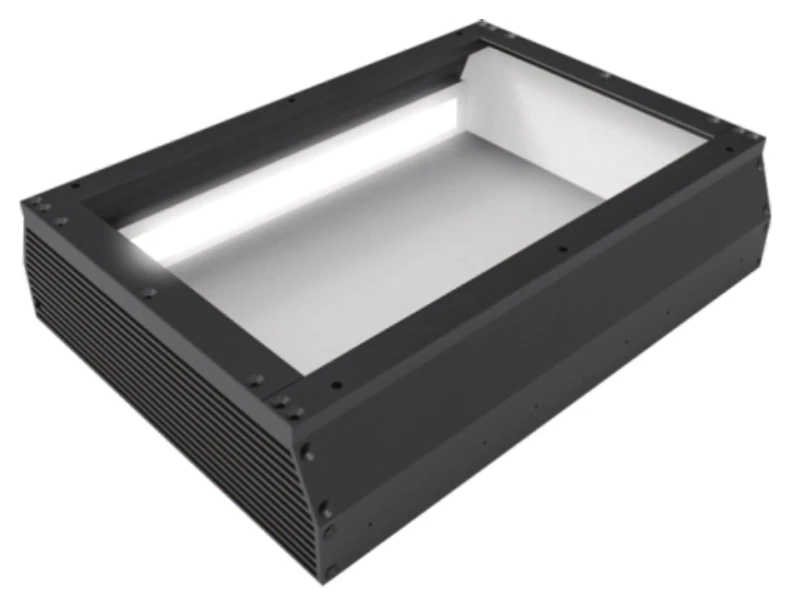

Shadowless light source (SPQ) (LS-SPQ-360-280-W)
Model LS-SPQ-360-280-W
Large rectangular shadowless light suitable for large measured objects, giving uniform illumination and eliminating reflections.
Features
- Suitable for large measured objects
- Uniform illumination
- Eliminate the reflective
Specifications
| Model | LS-SPQ-360-280-W |
|---|---|
| Wavelength red | 620-630 nm |
| Wavelength green | 520-530 nm |
| Wavelength blue | 465-475 nm |
| Colour temperature white | 6000-6500 K |
| Wavelength IR | 850-940 nm |
| Wavelength UV | 365-405 nm |
| Storage temperature | 20 to 60 °C |
| Operating temperature | 0 to 40 °C |
| Humidity | 20-85 %RH (non-condensing) |
| Optional accessories | Extension cable |
| Controller | LS-DPS series, LS-APS series, LS-SPS series (the selected controller should match the power of the light source) |
| Service life (red) | 60000 h continuous at 25 °C, 50% illumination, to 50% decrement |
| Service life (white) | 30000 h continuous at 25 °C, 50% illumination, to 50% decrement |
| Warranty | 1 year from shipment (faults not caused by the user: free repair or replacement) |
| Illuminance chart reference | SPQ-326-246-W; uniformity SPQ-326-246-W, FOV 350 x 350 mm at LWD 50/70/90 mm |
| Power R (W) | / |
| Power G/B/W (W) | 40 |
| Overall L (mm) | 360 |
| Overall W (mm) | 280 |
| Overall H (mm) | 74 |
| Recommended controller | LS-DPS, LS-APS, LS-SPS |
| Shipping weight | 3.15 kg |
Applications
- Inspection of mobile phone frame appearance
- Mobile phone edge extraction
- Clock appearance inspection
- Various character recognition
- Colour inspection
- Screw recognition for mobile phones
- Round hole size inspection of mobile phone shells
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the Shadowless light source (SPQ) series
| Model | Size | Power | Colours | Price | Availability | |
|---|---|---|---|---|---|---|
| LS-SPQ-300-220-R/W | 51 W | $1,009.00 | 4 in stock | View | ||
| LS-SPQ-326-246-R/G/B/W | 68 W | $1,159.00 | 9 in stock | View |
