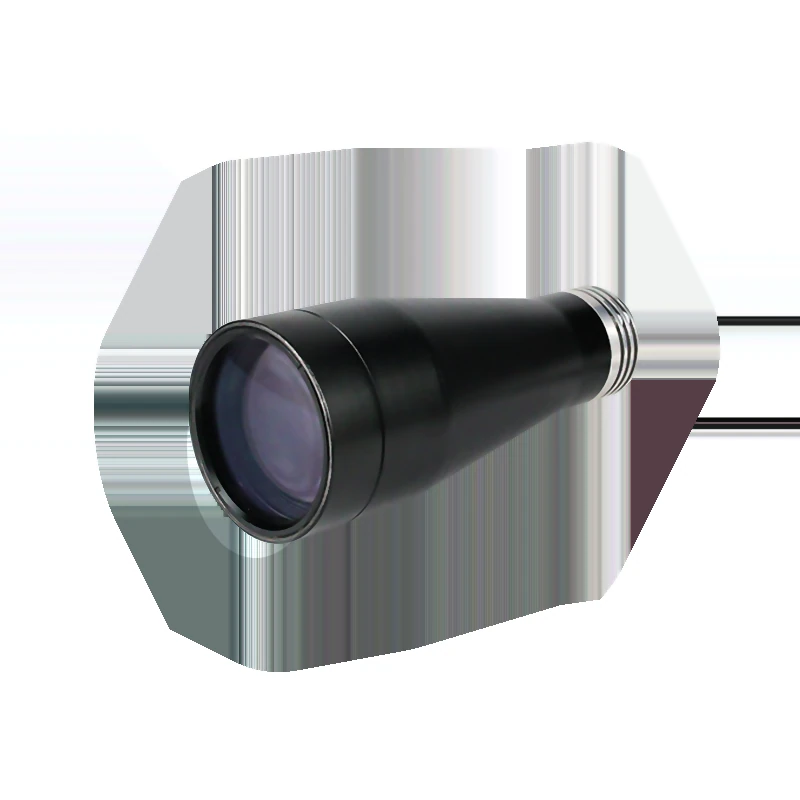

Collimation light (SPP series) (LS-SPP505-W)
Model LS-SPP505-W
Lens-type collimation light producing a 50 mm parallel light beam, for profile measurement, subtle defects on smooth surfaces and high precision dimension measurement.
Features
- 50 mm light beam
- Tailor-made colour, mount method, shape and size, and connector
Specifications
| Model | LS-SPP505-W |
|---|---|
| Light beam | 50 mm |
| Housing dimensions (drawing) | dia. 61 mm x 148 mm long, outlet dia. 38.5 mm |
| Serial number | 1 |
| Red version (current/power) | 1A/2.7W |
| White/green/blue version (current/power) | 1.2A/5W |
| Shipping weight | 0.50 kg |
Applications
- Profile measurement and detection of subtle defects on smooth surfaces
- High precision dimension measurement
- Mobile phone screen frame positioning detection
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
