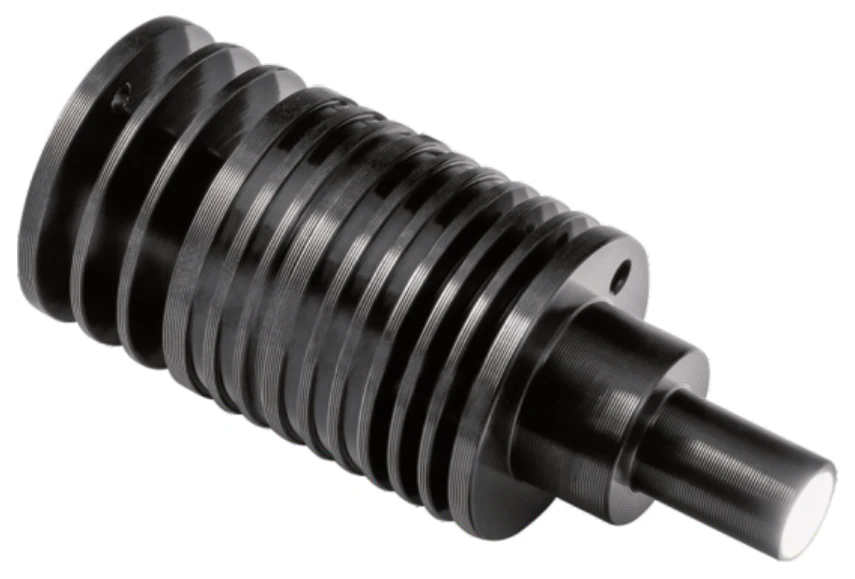

Spot light source (SPL) (LS-SPL0859-R/G/B/W)
Model LS-SPL0859-R/G/B/W
Point light with high brightness and a small luminous area; compact with efficient heat dissipation, low power consumption and long life. Can replace fibre-optic halogen lamps and suits coaxial illumination through lenses.
Features
- High brightness, small luminous area
- Compact, efficient heat dissipation, low power consumption and long service life
- Can replace optical fibre halogen lamps; suitable for coaxial illumination through lenses
Specifications
| Model | LS-SPL0859-R/G/B/W |
|---|---|
| Wavelength red | 620-630 nm |
| Wavelength green | 520-530 nm |
| Wavelength blue | 465-475 nm |
| Colour temperature white | 6000-6500 K |
| Wavelength IR | 850-940 nm |
| Wavelength UV | 365-405 nm |
| Storage temperature | 20 to 60 °C |
| Operating temperature | 0 to 40 °C |
| Humidity | 20-85 %RH (non-condensing) |
| Optional accessories | Extension cable |
| Controller | LS-CPL series (the selected controller should match the power of the light source) |
| Service life (red) | 60000 h continuous at 25 °C, 50% illumination, to 50% decrement |
| Service life (white) | 30000 h continuous at 25 °C, 50% illumination, to 50% decrement |
| Warranty | 1 year from shipment (faults not caused by the user: free repair or replacement) |
| Illuminance chart reference | LS-SPL0859-W; uniformity LS-SPL0859 at LWD 110 mm, FOV 40 x 40 mm |
| Power (W) | 3 |
| Overall OD (mm) | 24 |
| Overall ID (mm) | 8 |
| Overall H (mm) | 59 |
| Recommended controller | LS-CPL0520A-4TD |
| Shipping weight | 0.20 kg |
Applications
- Wafer positioning and defect inspection
- Optical filter surface defect inspection
- Mark point positioning
- Flat object surface defect inspection
- Flat object positioning inspection
- Positioning inspection
- Distinguishing different materials for positioning
- Dedicated light source for coaxial lens inspection
- High speed inspection
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
