Ring lights

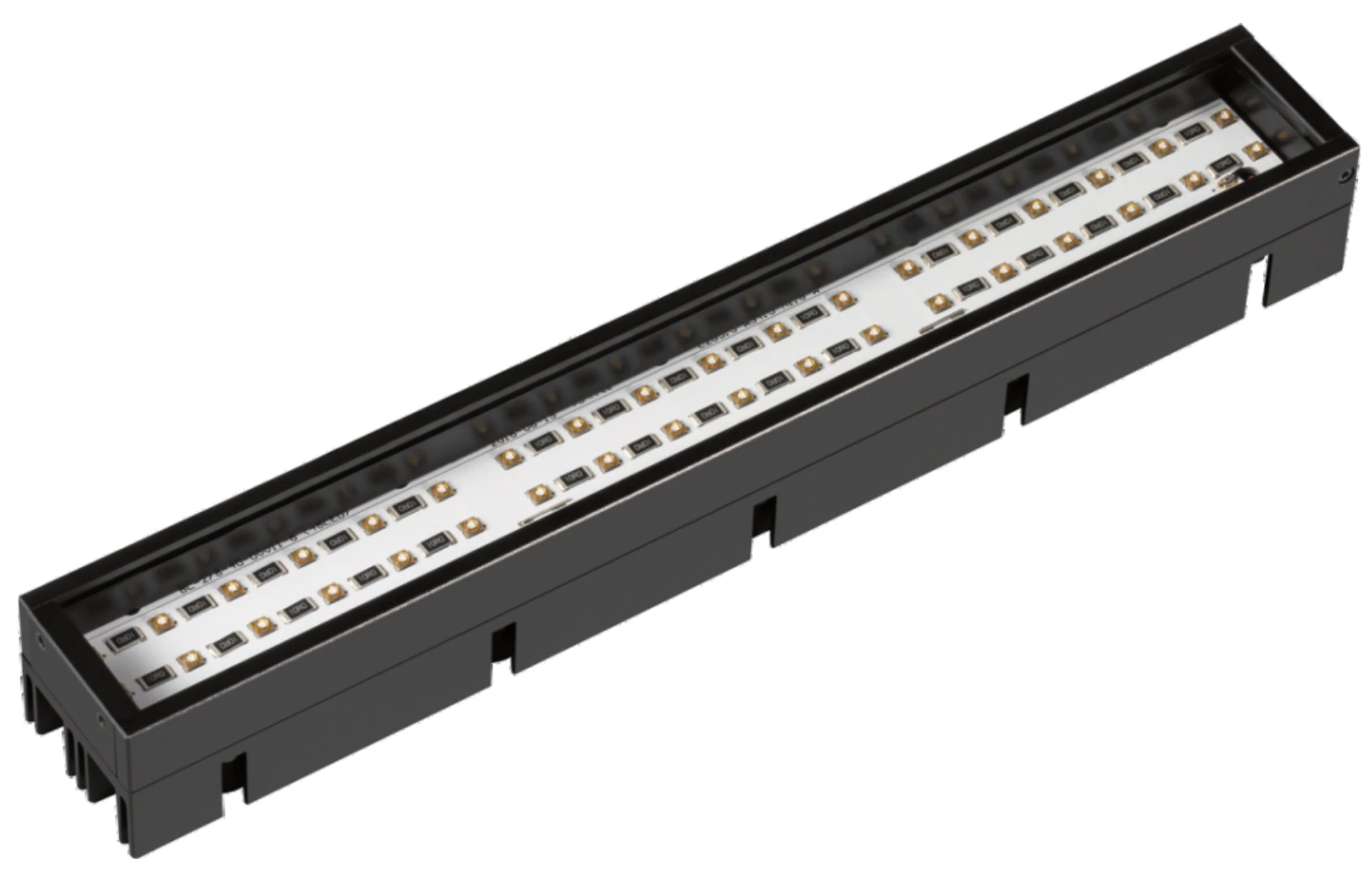

6 mm UV light, UV series (LS-SPL0854-UV365)
Model LS-SPL0854-UV365
Uses imported high-output UV LEDs; uses differences in scattering and spectral reflectance for a variety of measurements.
Features
- Using imported high output UV LEDs
- Using the difference in scattering rates for a variety of measurements
- Using the difference in spectral reflectance for a variety of measurements
Specifications
| Model | LS-SPL0854-UV365 |
|---|---|
| Storage temperature | 20-60 °C |
| Operating temperature | 0-40 °C |
| Humidity | 20-85 %RH (non-condensing) |
| Service life | At 25 °C ambient: red works continuously for 60000 hours at 50% illumination, white 30000 hours at 50% illumination (decrement at 50%) |
| Warranty | 1 year free maintenance or replacement for faults not caused by the user |
| Optional accessories | Extension cable |
| Controller | LS-DPS, LS-APS, LS-SPS, LS-CPL series (match the power of the light source) |
| Power (W) | 1.9 |
| Luminous dimension (mm) | dia. 6 |
| Overall size (mm) | OD24 x ID8 x H54 |
| Recommended controller | LS-CPL0510A-2T |
| Cable length (mm) | 500 |
| Shipping weight | 0.50 kg |
Applications
- Checking sealing material by stimulating fluorescence
- Measurements using the difference in spectral reflectance
- Invisible barcode reading
- ITO location inspection
- Size measurement
- Glue inspection inside earphones
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the UV light, UV series series
| Model | Size | Power | Price | Availability | |
|---|---|---|---|---|---|
| LS-RS5060-UV365 | 44 mm | 3.1 W | $89.00 | 3 in stock | View |
| LS-RS7430-UV365 | 62.4 mm | 4.1 W | $129.00 | 2 in stock | View |
| LS-RS9070-UV365 | 82 mm | 11 W | $149.00 | 4 in stock | View |
| LS-RS12070-UV365 | 109.8 mm | 15 W | $189.00 | 5 in stock | View |
| LS-RS13220-UV365 | 113.4 mm | 13 W | $209.00 | 4 in stock | View |
