Home / Lenses / 360° inspection lenses / 360° Inspection lenses

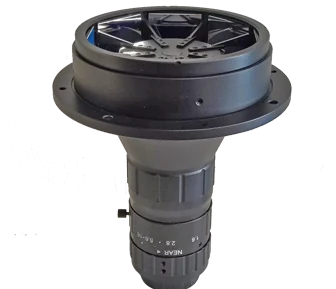

2/3", C-mount 360° Inspection Lens (LS-SOD2308)

360° inspection lenses

2/3", C-mount 360° Inspection Lens (LS-SOD2308)

Model LS-SOD2308

2/3", C-mount 360° Inspection Lens. Poly View multi-angle reflection lens with 8 mirrors for 360-degree outer-wall imaging of small cylindrical objects 0.8-30 mm in diameter (object height 4.6-17 mm) on sensors of 2/3" and larger. Marked EOL soon, to be replaced by a new product. At a glance: format 2/3"; aperture F1.6~16; mount C; field of view min. 0.8 x 17 mm; typical 6 x 16 mm; max 30 x 7.6 mm; size flange dia. 96.1 mm, length 109 mm.

$619.00 USDIn stock · 4 available

Inventory updated Oct 14, 2026

0.94 kg shipping weight · Ships in 2-3 weeks
  • Secure checkout by ShopifyCard, PayPal, Venmo, Shop Pay or Google Pay
  • 90-day returnsUnused items; free return label in the US · Returns policy
  • Tracked UPS or DHL shippingExact cost shown at checkout · Shipping policy
  • Questions about fit?Contact us; we reply within one business day

Features

  • Multi-angle 360-degree imaging
  • High-resolution megapixel
  • Object height 4.6-17 mm outer view
  • Out diameter 0.8-30 mm
  • Outer view / inner view multi-angle imaging
  • High resolution megapixel
  • Outer view object height 4.6-17 mm
  • Object outer diameter 0.8-30 mm

Specifications

ModelLS-SOD2308
Format2/3"
Image circledia. 6.6 mm
Field of view (diameter x height, WD 2 mm)min. 0.8 x 17 mm; typical 6 x 16 mm; max 30 x 7.6 mm
ApertureF1.6~16
Wavelength420-680 nm
MountC
Mirrors8
Sizeflange dia. 96.1 mm, length 109 mm
Inspection tableDiameter / height at WD 2 mm / height at WD 5 mm (mm): 0.8 / 17 / 14; 6 / 16 / 13; 12 / 13.9 / 10.9; 20 / 11 / 8; 30 / 7.6 / 4.6
Sensor2/3"
FOV (diameter x height, WD=2 mm)Min. 0.8 x 17 mm; Typical 6 x 16 mm; Max 30 x 7.6 mm
Object height at WD 2 mm / 5 mm (by object diameter)0.8 mm: 17 / 14; 6 mm: 16 / 13; 12 mm: 13.9 / 10.9; 20 mm: 11 / 8; 30 mm: 7.6 / 4.6 (mm)
ViewOuter view
Shipping weight (estimated)0.94 kg

Applications

  • Batteries
  • Fasteners
  • Bolts
  • Capsules
  • Pharmacy
  • Bottles
