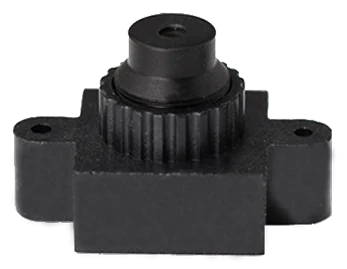

5.7 mm, 1/3", 5 MP, M8-mount Low-Distortion M12 Lens (LS-SND1001-5M)

M12 board lenses

5.7 mm, 1/3", 5 MP, M8-mount Low-Distortion M12 Lens (LS-SND1001-5M)

Model LS-SND1001-5M

5.7 mm, 1/3", 5 MP, M8-mount Low-Distortion M12 Lens. High resolution: 5 megapixel covering all 5MP & 1080P. Large format: 1/3". Low distortion: <-5.8% low distortion. At a glance: focal length 5.7 mm; format 1/3"; resolution 5.0 Megapixel; aperture F3.0 Fixed iris; mount M8 x P0.35 / M12 x P0.5 (optional).

$49.00 USDIn stock · 2 available

Inventory updated Oct 14, 2026

0.11 kg shipping weight · Ships in 2-3 weeks
  • Secure checkout by ShopifyCard, PayPal, Venmo, Shop Pay or Google Pay
  • 90-day returnsUnused items; free return label in the US · Returns policy
  • Tracked UPS or DHL shippingExact cost shown at checkout · Shipping policy
  • Questions about fit?Contact us; we reply within one business day

Features

  • High resolution: 5 megapixel covering all 5MP & 1080P
  • Large format: 1/3"
  • Low distortion: <-5.8% low distortion
  • Small size: Small size design makes it various application

Specifications

ModelLS-SND1001-5M
Resolution5.0 Megapixel
Format1/3"
Focal length5.7 mm
Back focal length4.89 mm
ApertureF3.0 Fixed iris
Angle of view (1/3", DxHxV)60 x 53 x 30 deg
Distortion<-5.8%
Sizedia. 6 x 6.68 mm
Optical total length10.04 mm
MountM8 x P0.35 / M12 x P0.5 (optional)
Weight8 g
Notes5G+IR650
Shipping weight (estimated)0.11 kg

Applications

  • Video conference
  • UAV
  • scanner
  • sports DV
  • machine vision
Complete the station

Drive the light from a light controller and pair it with a lens for your field of view and working distance.

Light controllers LensesSelection guide

Other sizes in the Low-Distortion M12 lenses series

ModelSizePriceAvailability
LS-S23ND2518-5M25 mm, 2/3", 5 MP, M12-mount $49.00 3 in stockView
LS-S23ND3518-5M35 mm, 2/3", 5 MP, M12-mount $49.00 4 in stockView
LS-S23ND5035-5MS50 mm, 2/3", 5 MP, M12-mount $49.00 4 in stockView
LS-SBF1620IR-5M16 mm, 1/2", 5 MP, M12-mount $49.00 4 in stockView
LS-SBF2524IR-5M25 mm, 1/2", 5 MP, M12-mount $49.00 4 in stockView
LS-SBF3137BLIR-4M25 mm, 1/2", 4 MP, M12-mount $49.00 2 in stockView
LS-SND0406IR-MF4 mm, 1/4", 1.3 MP, M6-mount $49.00 4 in stockView
LS-SND0418F-2M4 mm, 1/1.8", 2 MP, M12-mount $49.00 2 in stockView
LS-SND0506IR-MF5 mm, 1/4", 1.3 MP, M6-mount $49.00 3 in stockView
LS-SND0628-5M6 mm, 1/1.8", 5 MP, M12-mount $49.00 5 in stockView
LS-SND0818LIR-5M8 mm, 1/1.8", 5 MP, M12-mount $49.00 3 in stockView
LS-SND0828-5M8 mm, 1/1.8", 5 MP, M12-mount $49.00 3 in stockView
LS-SND1228-5M12 mm, 1/1.8", 5 MP, M12-mount $49.00 2 in stockView
LS-SND1628-5M16 mm, 1/1.8", 5 MP, M12-mount $49.00 2 in stockView
LS-SND2528-5M25 mm, 1/1.8", 5 MP, M12-mount $49.00 3 in stockView
LS-SND3118IR-3ML8 mm, 1/1.8", 3 MP, M12-mount $49.00 3 in stockView
LS-SND3196-5ML12 mm, 1/1.8", 5 MP, M12-mount $49.00 2 in stockView
LS-SND3225A-2ML4.5 mm, 1/1.8", 2 MP, M12-mount $49.00 5 in stockView
LS-SND3328-5M3 mm, 1/2", 5 MP, M12-mount $49.00 2 in stockView
LS-SND3401LB-5M16 mm, 1/2", 5 MP, M12-mount $49.00 2 in stockView
LS-SND3427-5M3 mm, 1/3", 5 MP, M12-mount $49.00 4 in stockView
LS-SND3518IR-3ML3.5 mm, 1/2.5", 3 MP, M12-mount $49.00 3 in stockView
LS-SND3928-5M3.9 mm, 1/2.5", 5 MP, M12-mount $49.00 2 in stockView
LS-SND4518IR-3ML4.5 mm, 1/2.5", 3 MP, M12-mount $49.00 3 in stockView

See all 51 models in the Low-Distortion M12 lenses series
