116 mm, 1.28x Line Scan Lens (LS-SLS1620)

Line scan lenses

116 mm, 1.28x Line Scan Lens (LS-SLS1620)

Model LS-SLS1620

116 mm, 1.28x Line Scan Lens. Line scan lenses for 16K, 5 um line scan cameras: max image dia. 82 mm with 160 lp/mm, max aperture F3.8 and distortion as low as 1 pixel. Five V-mount models from 0.26x to 3x magnification plus SLS1620. At a glance: magnification 1.28X; working distance 135 mm; focal length 116 mm; format dia. 84 mm; aperture F3.8.

$1,199.00 USDIn stock · 2 available

Inventory updated Oct 14, 2026

0.94 kg shipping weight · Ships in 2-3 weeks
  • Secure checkout by ShopifyCard, PayPal, Venmo, Shop Pay or Google Pay
  • 90-day returnsUnused items; free return label in the US · Returns policy
  • Tracked UPS or DHL shippingExact cost shown at checkout · Shipping policy
  • Questions about fit?Contact us; we reply within one business day

Features

  • Supports 16K line scan cameras, 5 um
  • Max image 82 mm and 160 lp/mm
  • Max aperture F3.8
  • Distortion as low as 1 pixel

Specifications

ModelLS-SLS1620
Focal length116 mm
Magnification1.28X
Formatdia. 84 mm
ApertureF3.8
Working distance135 mm
Flange distance292 mm
Magnification1.75 / -2 / -2.25
W.D. (mm)135.7 / 127.2 / 121
Flange focal distance (mm)292.9 / 322.8 / 350.9
F/#3.8
EFL116 mm
FOV11.3 deg
Distortion0.0008%
Max imagedia. 84 mm
Size (datasheet drawing)dia. 55.7 x 71.9 mm
Shipping weight (estimated)0.94 kg

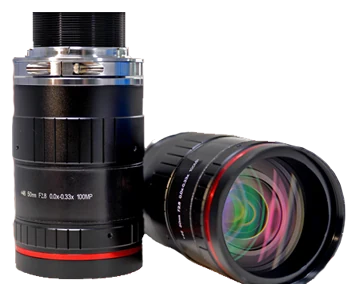

Photo shows a representative model of this series; see the specifications for this model.

Complete the station

Drive the light from a light controller and pair it with a lens for your field of view and working distance.

Light controllers LensesSelection guide
