Spot lights

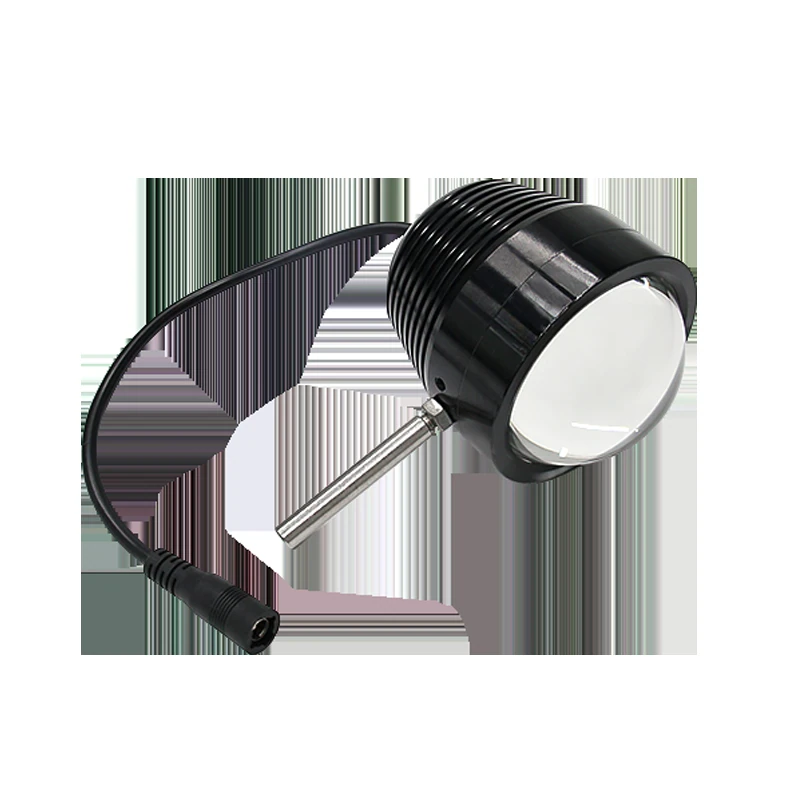

Near infrared light (SL series) (LS-SL7275)
Model LS-SL7275
Provides stable 850 nm near-infrared light for machine vision systems, with intelligent overtemperature protection, high brightness and uniform light; small size, light weight and easy to install.
Features
- Stable 850 nm near-infrared light
- Intelligent overtemperature protection, high brightness, uniform light
- Small size, light weight, easy to install
- Aeronautical aluminium heat dissipation shell + original spherical lens
- IP67
- Refrigeration cover can be installed on high-temperature industrial sites
Specifications
| Model | LS-SL7275 |
|---|---|
| Light-emitting wafer | Industrial near infrared LED |
| Wavelength | 850 nm |
| Quantity of radiant energy | Po > 2600MW |
| Beam mode | 120 |
| Input voltage | DC12-24V |
| Power | 10W |
| Control mode | Always on, strobe, switch value, level (optional) |
| Operating ambient temperature | 40 °C to 55 °C (refrigeration cover can be installed on high-temperature industrial site) |
| Protection grade | IP67 |
| Weight | 350 g |
| Structure | Aeronautical aluminum heat dissipation shell + original spherical lens |
| Mounting base | 1/4"-20 |
| Surface treatment | Anodic oxidation blackening |
| Radiation energy | Po>2600MW |
| Power/CH | 10W |
| Transmission voltage | 24V |
Applications
- Automation machinery
- Industrial robots
- Mold protection
- Non-destructive testing
- Sorting testing
- Intelligent transportation
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
