Spot lights

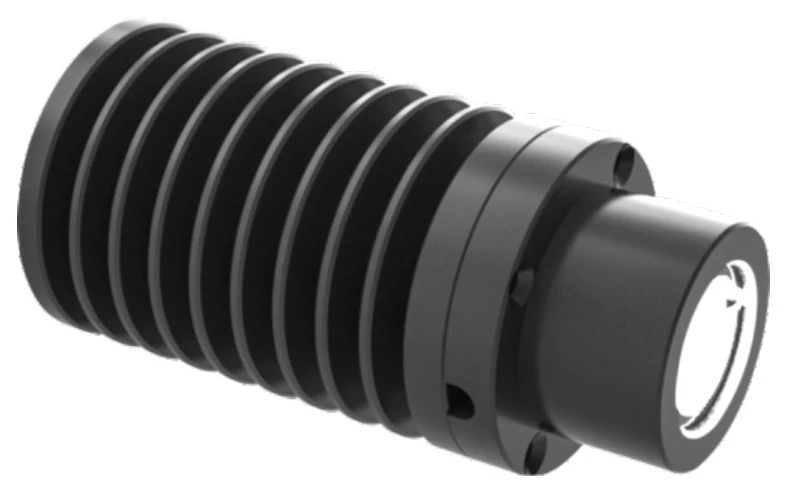

Spot light source (SL) (LS-SL21-63.9-WDG)
Model LS-SL21-63.9-WDG
High-intensity spot light, three times the brightness of standard spot lights; heat-dissipating design keeps the housing below 45 °C and a special light-guide optic reaches very high intensity with uniformity above 95%.
Features
- Three times brightness of standard spot lights
- High effective heat dissipation design keeps the housing temperature below 45 °C
- Special light-guide optical part; intensity printed as '600,0000 lux'
- Uniformity of light source above 95%
Specifications
| Model | LS-SL21-63.9-WDG |
|---|---|
| Wavelength red | 620-630 nm |
| Wavelength green | 520-530 nm |
| Wavelength blue | 465-475 nm |
| Colour temperature white | 6000-6500 K |
| Wavelength IR | 850-940 nm |
| Wavelength UV | 365-405 nm |
| Storage temperature | 20 to 60 °C |
| Operating temperature | 0 to 40 °C |
| Humidity | 20-85 %RH (non-condensing) |
| Optional accessories | Extension cable |
| Controller | LS-CPL series (the selected controller should match the power of the light source) |
| Service life (red) | 60000 h continuous at 25 °C, 50% illumination, to 50% decrement |
| Service life (white) | 30000 h continuous at 25 °C, 50% illumination, to 50% decrement |
| Warranty | 1 year from shipment (faults not caused by the user: free repair or replacement) |
| Illuminance chart reference | LS-SL21-63.9-WDG; uniformity at LWD 110 mm, FOV 40 x 40 mm (BJQ, RJQ, WDG) |
| Power (W) | 5.5 |
| OD (mm) | 11 |
| Overall OD (mm) | 29 |
| Overall ID (mm) | 21 |
| Overall H (mm) | 60 |
| Recommended controller | LS-CPL0530AHC-4TD |
| Shipping weight | 0.20 kg |
Applications
- High speed motion inspection
- Vibration occasion inspection
- High-light application occasions
- Steel wire inspection
- Foreign matter in groove inspection
- Mark positioning
- USB terminal pin inspection
- Cell phone hole size measurement
- Screw hole blockage inspection
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
