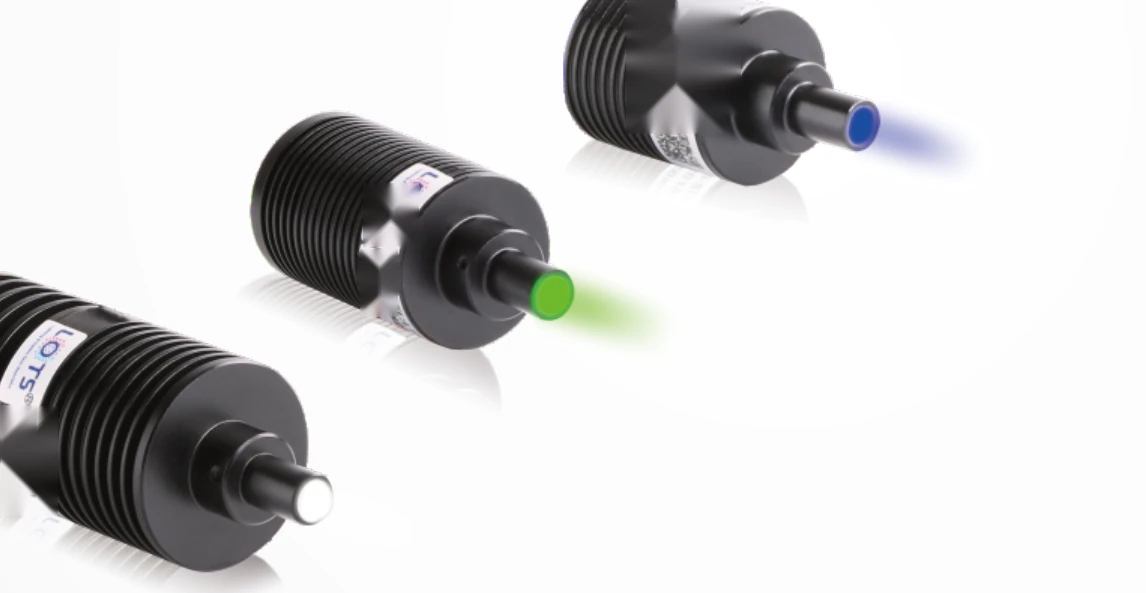

6 mm High luminance spot light (SL) (LS-SL085)
Model LS-SL085
High-power LED spot light with a column lens, used with microscope lenses and telecentric lenses.
Features
- High power LED, high luminance
- Column lens adopted
- Used with microscope lens, telecentric lens
Specifications
| Model | LS-SL085 |
|---|---|
| Adapted controller | Constant current controller |
| Customizable | multi-area control, colour and colour temperature, cable length, installation method, power |
| Cable (mm) | 500 (drawings) |
| Operating temperature | 0-50 °C |
| Operating humidity | 20-85% (non-condensing) |
| Life span | 50000 h (to 50% of factory-default luminance) |
| Extension cable options | PVC extension cable (high flexibility, bending and heat resistant, for use inside equipment) or high-flexibility extension cable (harder and more abrasion resistant than PVC, for drag-chain production lines) |
| Custom wavelengths | UV & IR light can be customized as required |
| Power (W) | 5 |
| Weight (g) | 87 |
| Length segments (mm) | 12 + 8 + 60.5 |
| Max. dia. (mm) | 32 |
| Emitting port dia. (mm) | 6 |
| Dimension drawing | 3 |
| Common | Y |
| Mounting | M4 depth 6, 2-M3 depth 4 |
Applications
- Mark position location
- Chip inspection
- Wafer inspection
- Liquid crystal glass base counterpoint
- Imaging example: location inspection on ITO film (LS-SL085-UV)
