0.067x, WD 318 mm, 2/3", C-mount Telecentric Lens (LS-SDM170)

Telecentric lenses

0.067x, WD 318 mm, 2/3", C-mount Telecentric Lens (LS-SDM170)

Model LS-SDM170

0.067x, WD 318 mm, 2/3", C-mount Telecentric Lens. At a glance: magnification 0.067x; working distance 318±5 mm; max sensor size 11.4 mm (2/3"); object field of view 170 mm; image-side f/# 4.9.

$1,259.00 USDIn stock · 4 available

Inventory updated Oct 14, 2026

9.24 kg shipping weight · Ships in 2-3 weeks
  • Secure checkout by ShopifyCard, PayPal, Venmo, Shop Pay or Google Pay
  • 90-day returnsUnused items; free return label in the US · Returns policy
  • Tracked UPS or DHL shippingExact cost shown at checkout · Shipping policy
  • Questions about fit?Contact us; we reply within one business day

Specifications

ModelLS-SDM170
Object field of view (dia. mm)170
Magnification (x)0.067
Working distance (mm)318±5
Max sensor size (dia. mm)11.4(2/3")
Image-side F/#4.9
Image-side MTF30 (lp/mm)>180
Theoretical depth of field (mm)±98@F11
Image-side distortion (% max)<0.1
Object-side telecentricity (deg max)<0.1
Object-to-image distance I/O (mm)721±5
Total length TTL (mm)385.9
MountC
Net weight (kg)6.53
Front filter threadM204 P0.75
Shipping weight (estimated)9.24 kg

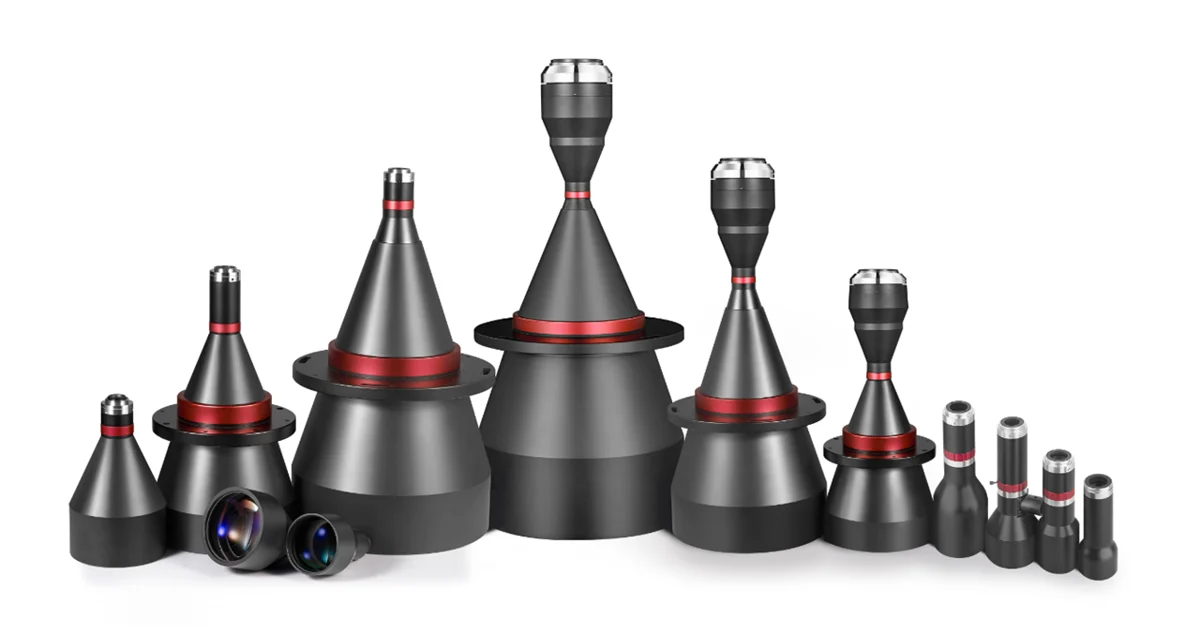

Photo shows a representative model of this series; see the specifications for this model.

Complete the station

Drive the light from a light controller and pair it with a lens for your field of view and working distance.

Light controllers LensesSelection guide

Other sizes in the Bi-telecentric lenses (SDM series) series

ModelSizePriceAvailability
LS-S150DM170-M72-19.50.398x, WD 318 mm, M72-mount $1,259.00 4 in stockView
LS-S150DM170-T90-M72-19.50.398x, WD 318 mm, M72-mount $1,259.00 3 in stockView
LS-S16KDM1700.347x, WD 318 mm, M72-mount $1,259.00 2 in stockView
LS-S175DM170-M580.171x, WD 318 mm, 1.75", M58-mount $1,259.00 5 in stockView
LS-S18DM1700.053x, WD 318 mm, 1/1.8", C-mount $1,259.00 2 in stockView
LS-S1DM1700.098x, WD 318 mm, 1", C-mount $1,259.00 4 in stockView
LS-S2DM170-M580.194x, WD 318 mm, 2", M58-mount $1,259.00 4 in stockView
LS-S35DMF1700.259x, WD 318 mm $1,259.00 4 in stockView
LS-S35DMFH170-M580.256x, WD 318 mm, M58-mount $1,259.00 5 in stockView
LS-S39DM170-M580.229x, WD 318 mm, M58-mount $1,259.00 4 in stockView
LS-S43DM170-M580.141x, WD 318 mm, 4/3", M58-mount $1,259.00 3 in stockView
LS-S43DMH170-M580.139x, WD 318 mm, 4/3", M58-mount $1,259.00 4 in stockView
LS-S11DM190H0.097x, WD 330 mm, 1.1", C-mount $1,369.00 2 in stockView
LS-S125DM190H0.038x, WD 330 mm, 1/2.5", C-mount $1,369.00 2 in stockView
LS-S12DM190H0.042x, WD 330 mm, 1/2", C-mount $1,369.00 3 in stockView
LS-S150DM190H-M720.356x, WD 330 mm, M72-mount $1,369.00 4 in stockView
LS-S150DM190H-M72-19.50.356x, WD 330 mm, M72-mount $1,369.00 3 in stockView
LS-S150DM190H-T900.356x, WD 330 mm, M72-mount $1,369.00 2 in stockView
LS-S16KDM190H0.311x, WD 330 mm, M72-mount $1,369.00 5 in stockView
LS-S175DM190H-M580.153x, WD 330 mm, 1.75", M58-mount $1,369.00 3 in stockView
LS-S175DM190H-M58-T900.153x, WD 330 mm, 1.75", M59-mount $1,369.00 2 in stockView
LS-S18DM190H0.047x, WD 330 mm, 1/1.8", C-mount $1,369.00 4 in stockView
LS-S1DM190H0.087x, WD 330 mm, 1", C-mount $1,369.00 4 in stockView
LS-S2DM190H-M580.174x, WD 330 mm, 2", M58-mount $1,369.00 4 in stockView

See all 429 models in the Bi-telecentric lenses (SDM series) series
