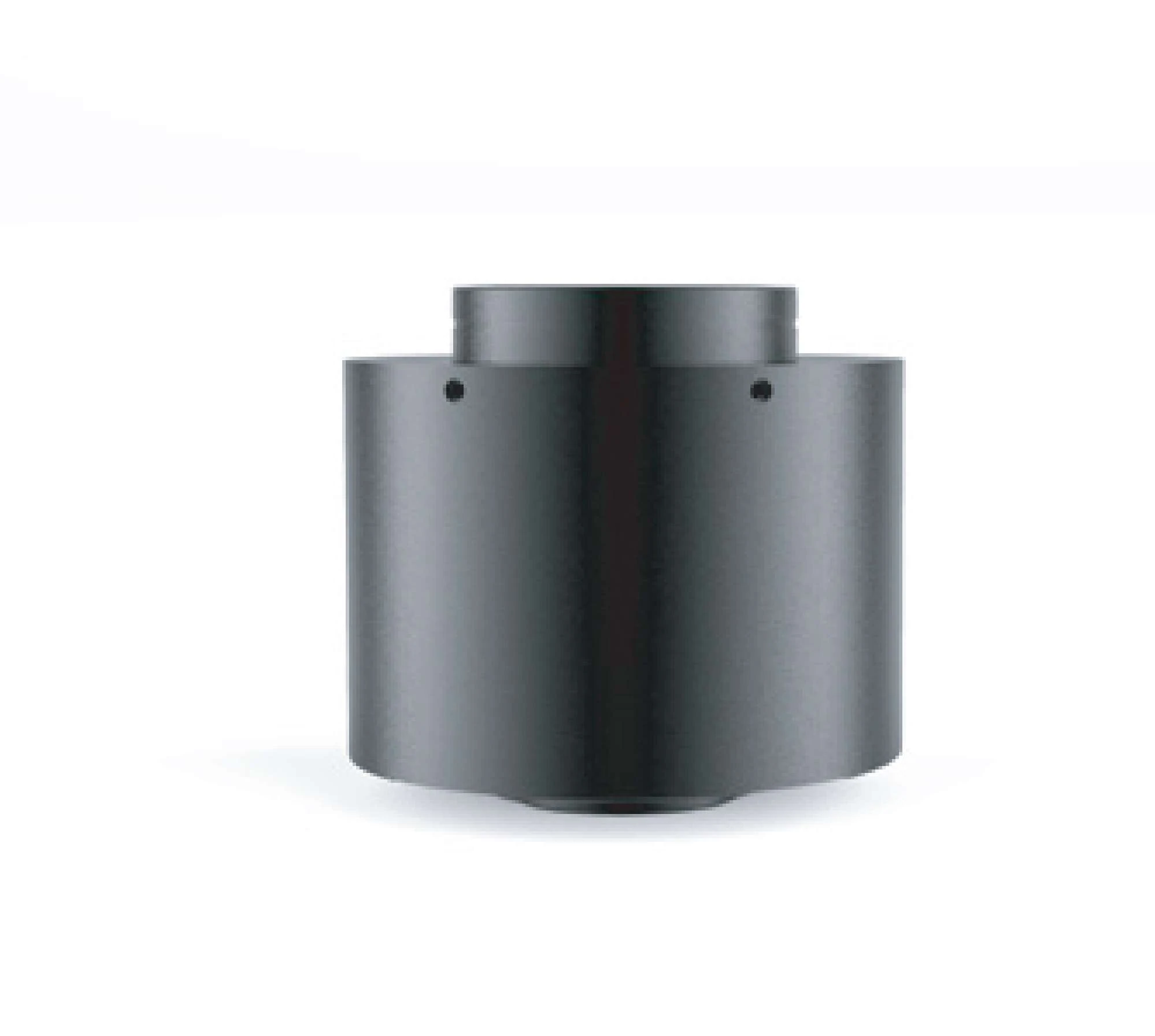

autofocus FA lens, motorized iris and focus, 12 mm, 3/4", C-mount (LS-SAF-RC1218-10M)
Model LS-SAF-RC1218-10M
Autofocus lens with the self-developed random (unordered) autofocus system: in a very short time it automatically focuses for any environment, scene and object, giving the following process steps stable, high-precision, consistent sharp images.
Features
- Quick: one command or one key press completes autofocus, several to hundreds of times faster than manual adjustment, especially when restarting after maintenance
- Accurate: every focus result is consistent and accurate, removing human adjustment error and subjective judgement
- Easy: no training needed; not dependent on operator experience or skill
- Flexible: one key refocuses when the working distance, object or environment changes; supports condition monitoring and alerts
- Random & multi-inspection: one machine can inspect several or mixed products, real-time and mobile inspection, not limited by object shape or size
- Compatible & extended: supports mainstream industrial cameras and servo drivers; cross-platform SDK for third-party systems and platforms; customisation available
Specifications
| Model | LS-SAF-RC1218-10M |
|---|---|
| Iris | Motorized |
| Focus | Motorized |
| Control interface | USB |
| Working temperature | 20 °C ~ +70 °C |
| code | LS-RC-M-23FA1218 |
| Focal length (EFL) | 12mm |
| Format | 3/4" (13) |
| Resolution | 5MP |
| Mount | C |
| Distortion | <0.1% |
| Mechanical back focus (MBF) | 12.818mm |
| Aperture | F1.8 |
| Focus range (MOD) | 250mm |
| Filter size | M34.6 x 0.5 |
| Dimension | 51.07 x 60mm |
| FOV (format not printed) row 1 | D 50.7° / H 40.3° / V 30.8° |
| FOV (format not printed) row 2 | D 41.3° / H 34.1° / V 23.3° |
| Sensor format | 3/4" |
| Field of view | (format not printed) row 1: D 50.7° / H 40.3° / V 30.8°; (format not printed) row 2: D 41.3° / H 34.1° / V 23.3° |
| Shipping weight | 0.38 kg |
Applications
- Laboratory testing, commissioning, deployment and acceptance
- 7 x 24 operation, routine and shutdown maintenance, retrofits and upgrades
