0.061x, WD 465 mm, 1.1", C-mount Telecentric Lens (LS-S11DM300)
Model LS-S11DM300
0.061x, WD 465 mm, 1.1", C-mount Telecentric Lens. At a glance: magnification 0.061x; working distance 465±6 mm; max sensor size 18.4 mm (1.1"); object field of view 300 mm; image-side f/# 6.2.
Specifications
| Model | LS-S11DM300 |
|---|---|
| Object field of view (dia. mm) | 300 |
| Magnification (x) | 0.061 |
| Working distance (mm) | 465±6 |
| Max sensor size (dia. mm) | 18.4(1.1") |
| Image-side F/# | 6.2 |
| Image-side MTF30 (lp/mm) | >145 |
| Theoretical depth of field (mm) | ±118@F11 |
| Image-side distortion (% max) | <0.1 |
| Object-side telecentricity (deg max) | <0.1 |
| Object-to-image distance I/O (mm) | 1145±6 |
| Total length TTL (mm) | 662.7 |
| Mount | C |
| Net weight (kg) | 46.686 |
| Front filter thread | None (no thread) |
| Shipping weight (estimated) | 65.46 kg |

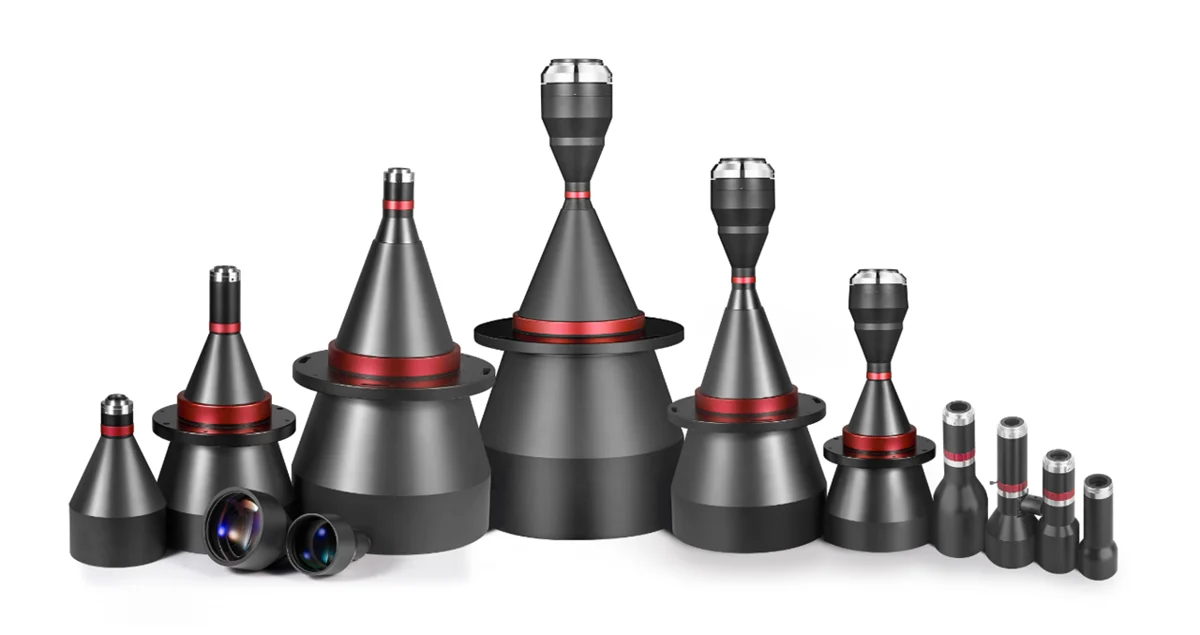

Photo shows a representative model of this series; see the specifications for this model.
