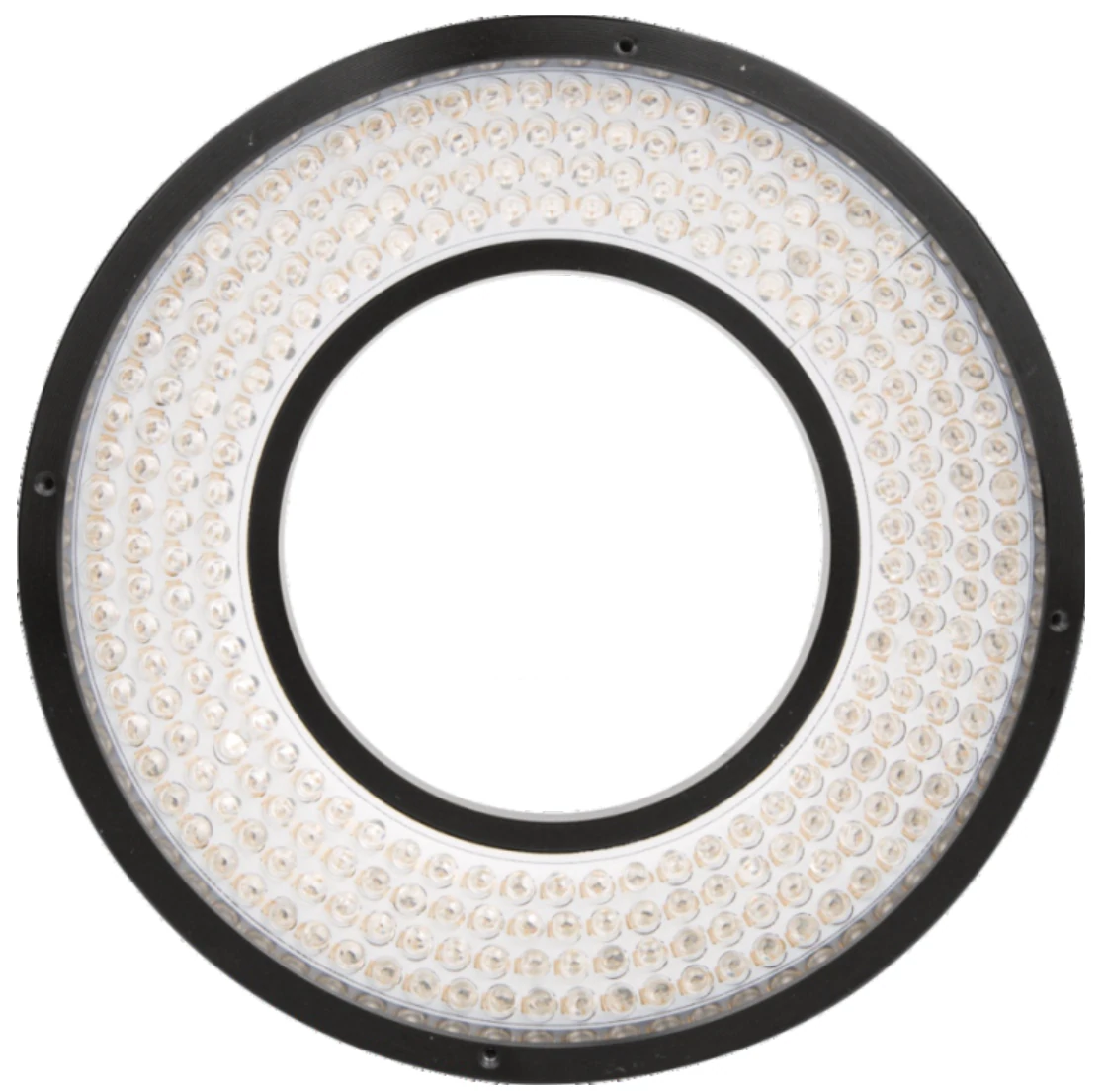

65 mm IR light, IR series (LS-RS7390-IR940)
Model LS-RS7390-IR940
Infrared lights custom-made for light shape and illumination mode, using differences in spectral reflectance for a variety of measurements.
Features
- Custom made for light shape and illumination mode
- Using the difference in spectral reflectance for a variety of measurements
Specifications
| Model | LS-RS7390-IR940 |
|---|---|
| Storage temperature | 20-60 °C |
| Operating temperature | 0-40 °C |
| Humidity | 20-85 %RH (non-condensing) |
| Service life | At 25 °C ambient: red works continuously for 60000 hours at 50% illumination, white 30000 hours at 50% illumination (decrement at 50%) |
| Warranty | 1 year free maintenance or replacement for faults not caused by the user |
| Optional accessories | Extension cable |
| Controller | LS-DPS, LS-APS, LS-SPS, LS-CPL series (match the power of the light source) |
| Power (W) | 5.9 |
| Luminous dimension (mm) | 65 |
| Overall size (mm) | OD73 x ID36 x H17.5 |
| Recommended controller | LS-DPS, LS-APS, LS-SPS |
| Cable length (mm) | 500 |
| Diffuser | diffuse plate optional |
| Shipping weight | 0.50 kg |
Applications
- LCD screen inspection
- Character reading
- Screen alignment
- Edge extraction
- Surface pattern appearance
- Foreign matter inspection through liquid
- Inspection of objects in food packaging
- Invisible barcode reading
