Dual aviation plug RS series fixed industrial barcode reader (RS100)

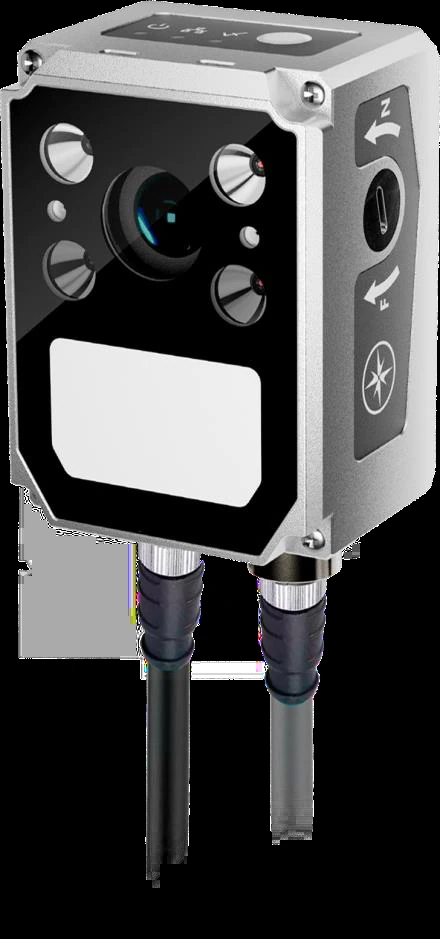

Representative photo of this series
Fixed code readers
Dual aviation plug RS series fixed industrial barcode reader, 1.2 MP (LS-RS100-12)
Model LS-RS100-12
Flexible-reading fixed industrial barcode reader with a new optical system: selectable light source type, lens and light colour, new Quick & Max modes, and precise stepless focusing from 30mm to infinity.
Features
- New optical system: flexible selection of light source type, lens and light source colour
- OneClick plus debugging with new Quick & Max modes for faster, more stable reading
- Precise stepless focusing from 30mm to ∞ based on installation distance and code size
- Machine vision algorithm engine
- Multiple light source options
- Various lens options
- Super resolution lens
- Wide field of view lens
Specifications
| Model | LS-RS100-12 |
|---|---|
| Support barcode | 2D: Datamatrix (ECC200), QR Code; 1D: Code39, Code93, Code128, EAN13, EAN8, UPC-E, interleaved 2 of 5 |
| Image sensor | 1280*960 Pixel Global Shutter CMOS |
| Max acquisition frame rate | 120FPS |
| Lighting system | Direct light (D), Polarized light (P), Uniform light (U) |
| Lighting color | Red / White / Blue |
| Focus | Automatic / Manual focus system |
| Sight | 2 green LED dot aiming |
| Communication interface | Ethernet@100Mbps, RS232 |
| Supported communication protocols | TCP/IP, RS232, EIP, Profinet, FTP, Modbus TCP |
| Input/Output IO | Non-polarized 2-way isolated IO input + Non-polarized 3-way isolated IO output |
| Barcode level verification | ISO/IEC 15415, ISO/IEC 16022, ISO/IEC TR29158 (AIM DPM-1-2006) |
| Powered by | 24V DC |
| Ambient temperature | 10~50°C |
| Protection level | IP65 |
| Certification | CE, FCC, RoHS |
| Ordering note | The actual model needs to be confirmed before placing an order; the light source color is selected when ordering. |
| Lenses | 12mm (Standard) |
| Field of view | 31° horizontally, 20° vertically |
| Focal length | 12 |
| Resolution | 1280 x 960 |
| Shutter | Global |
| Voltage | 24 V DC |
| Shipping weight | 0.59 kg |
Applications
- Automobile manufacturing (DPM part traceability)
- Lithium battery new energy
- Logistics
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the Dual aviation plug RS series fixed industrial barcode reader (RS100) series
| Model | Size | Colours | Price | Availability | Link |
|---|---|---|---|---|---|
| LS-RS100-6 | 1.2 MP | $559.00 | 8 in stock | View | |
| LS-RS100-16 | 1.2 MP | $559.00 | 9 in stock | View |
