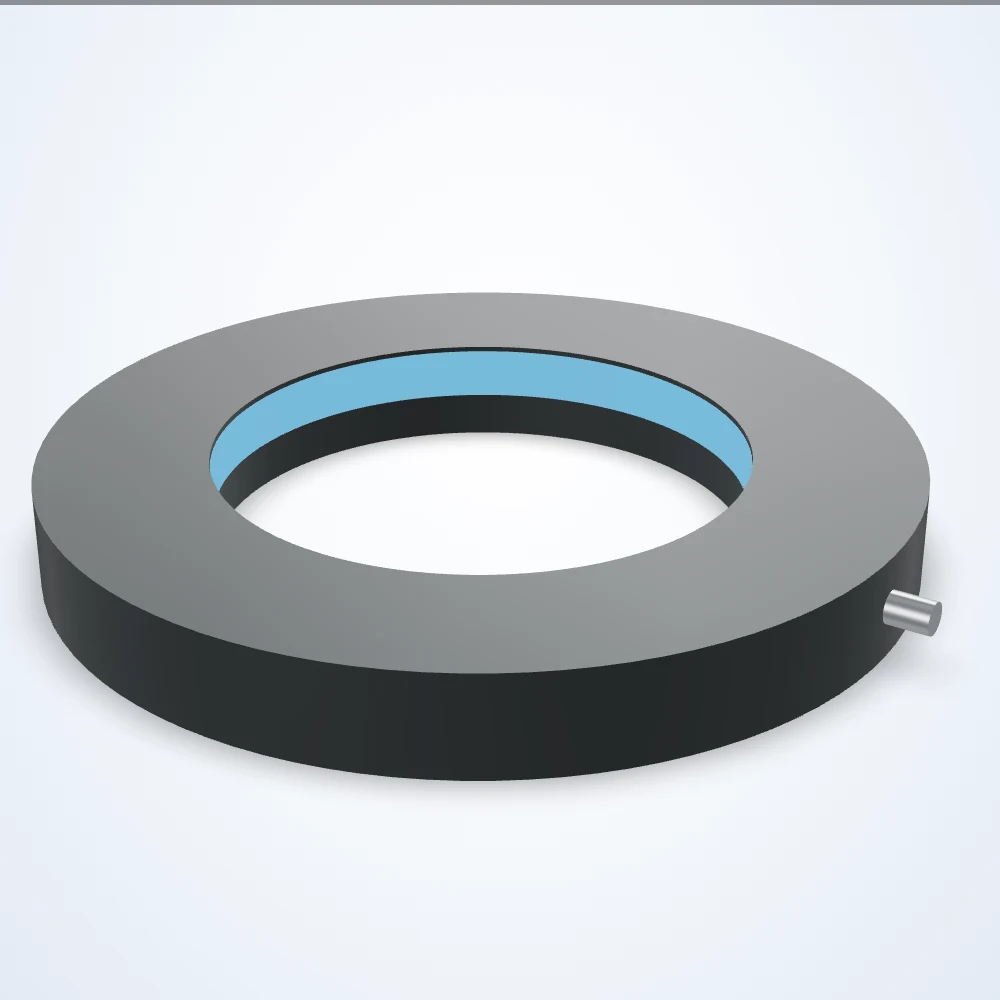

Rendered illustration: the actual product may differ in appearance.
Ring lights
323.1 mm ring light (LS-RNG-0054)
Model LS-RNG-0054
323.1 mm ring light. Connection: 5 Pin M12 Male A-Coded. Available in 10 configurations (color, driver location, driver nomenclature, intensity adjustment type); choose one below and request a quote.
Specifications
| Model | LS-RNG-0054 |
|---|---|
| Active Diameter (mm) | 197.6 |
| Collimated | Not Collimated |
| Compliances | CE, IEC 62471, RoHS |
| Connector Type | 5 Pin M12 Male A-Coded |
| Connectorized At Light | Connectorized |
| Daisy Chain | No |
| Direct Connect | No |
| Driver Included | Included |
| Height (mm) | 38.1 |
| Housing Material | Aluminum |
| IP Rating | IP68 |
| Inner Diameter (mm) | 197.6 |
| Lens Angle | 25 Degree |
| Maximum Duty Cycle (%) | 100 |
| Maximum Operating Temperature (C) | 45 |
| Maximum Operating Temperature (F) | 113 |
| Maximum Overcurrent Strobe Duty Cycle (%) | 100 |
| Maximum Overcurrent Strobe Frequency (Hz) | 4000 |
| Maximum Overcurrent Strobe Latency (us) | 10 |
| Maximum Storage Temperature (C) | 70 |
| Maximum Storage Temperature (F) | 158 |
| Maximum Strobe Duty Cycle (%) | 100 |
| Maximum Strobe Frequency (Hz) | 4000 |
| Maximum Strobe Latency (us) | 10 |
| Minimum Operating Temperature (F) | 32 |
| Minimum Overcurrent Strobe Duration (us) | 30 |
| Minimum Storage Temperature (C) | -20 |
| Minimum Storage Temperature (F) | -4 |
| Minimum Strobe Duration (us) | 30 |
| Mounting Method | Tapped Holes |
| NPN Trigger Voltage (V) | < 1 VDC |
| Operation Modes | Constant On, Constant On – Dimmable, Overcurrent Strobe, Overcurrent Strobe - Dimmable, Strobe, Strobe – Dimmable |
| Outer Diameter (mm) | 323.1 |
| PNP Trigger Current (mA) | 20 |
| PNP Trigger Voltage (V) | 4-24 VDC |
| Polarized | Not Polarized |
| Product Weight (Kg) | 0.12 |
| Product Weight (Lbs) | 0.26 |
| Viewport Diameter (mm) | 197.6 |
| Voltage | 24 VDC |
