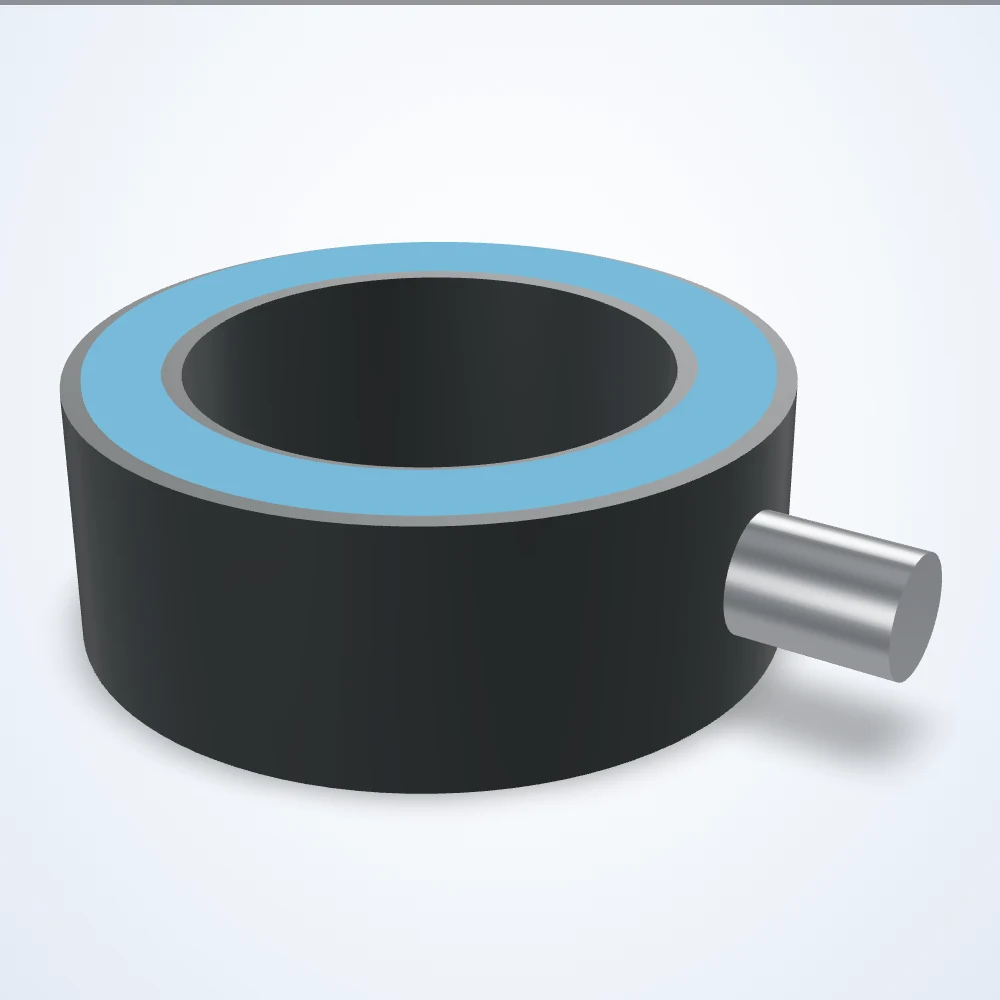

Rendered illustration: the actual product may differ in appearance.
Ring lights
Ring light, 71 mm (LS-RNG-0050)
Model LS-RNG-0050
LED ring light that mounts around the lens for even, on-axis illumination of the field of view. 24 VDC supply; connection: 5 pin m12 male a-coded. Choose colour below (5 configurations) and request a quote.
Specifications
| Model | LS-RNG-0050 |
|---|---|
| Lens / beam angle | 14 Degree |
| Lit diameter (mm) | 71 |
| Height (mm) | 26.3 |
| Outer diameter (mm) | 71 |
| Inner diameter (mm) | 48 |
| Viewport diameter (mm) | 48 |
| Voltage | 24 VDC |
| Connector | 5 Pin M12 Male A-Coded |
| Connection at light | Connectorized |
| Cable length (mm) | 254 |
| Driver included | Included |
| Driver location | Internal |
| Intensity control | Analog Voltage |
| Operating modes | Constant On, Constant On – Dimmable, Overcurrent Strobe, Overcurrent Strobe - Dimmable, Strobe, Strobe – Dimmable |
| Strobe trigger input | NPN Trigger, PNP Trigger |
| Operating temperature | -18 to 50 °C |
| IP rating | IP65 |
| Housing | Aluminum |
| Mounting | T-Slot Channels |
| Collimated | Not Collimated |
| Daisy chain | No |
| Diffused | Not Diffused |
| Direct connect | No |
| Driver nomenclature | SVL Multi-Drive |
| Max overcurrent strobe current | 2500 mA |
| Max overcurrent strobe input power | 60 W |
| Max strobe duration | 0 ms |
| Maximum constant on current (ma) | 290 |
| Maximum current (overcurrent strobe) (ma) | 2500 |
| Maximum duty cycle (%) | 100 |
| Maximum input power constant on (w) | 7 |
| Maximum input power overcurrent strobe (w) | 60 |
| Maximum overcurrent strobe duration (ms) | 5 |
| Maximum overcurrent strobe duty cycle (%) | 10 |
| Maximum overcurrent strobe frequency (hz) | 4000 |
| Maximum overcurrent strobe latency (us) | 6 |
| Maximum strobe current (ma) | 290 |
| Maximum strobe duty cycle (%) | 100 |
| Maximum strobe frequency (hz) | 4000 |
| Maximum strobe input power (w) | 7 |
| Maximum strobe latency (us) | 10 |
| Minimum overcurrent strobe duration (us) | 10 |
| Minimum strobe duration (us) | 30 |
| NPN trigger current (ma) | 15 |
| NPN trigger voltage (v) | < 1 VDC |
| PNP trigger current (ma) | 20 |
| PNP trigger voltage (v) | 4-24 VDC |
| Polarized | Not Polarized |
| Storage temperature | -20 to 70 °C |
| Compliance | CE, IEC 62471, RoHS |
