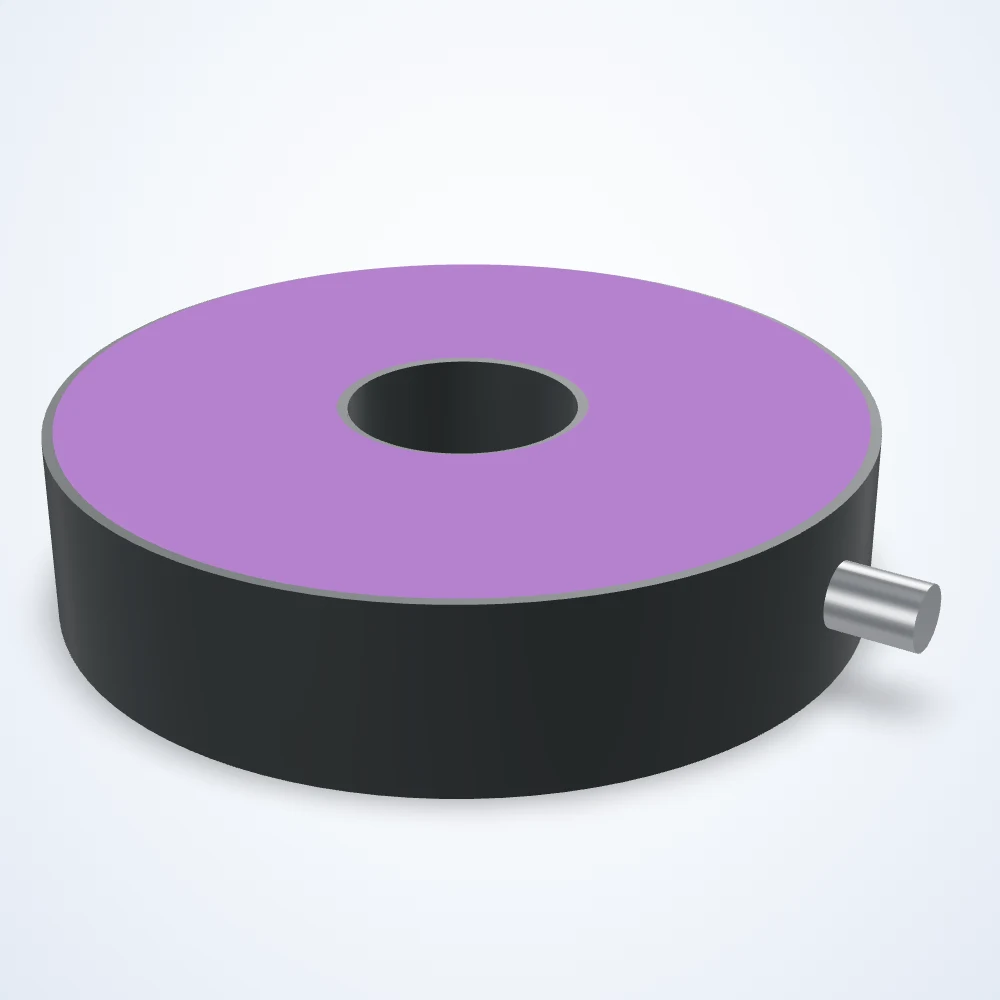

Rendered illustration: the actual product may differ in appearance.
Ring lights
Ring light, 151.2 mm (LS-RNG-0035)
Model LS-RNG-0035
LED ring light that mounts around the lens for even, on-axis illumination of the field of view. 24 VDC supply; connection: 5 pin m12 male a-coded. Choose colour, lens / beam angle, driver location, intensity control, strobe trigger input below (54 configurations) and request a quote.
Specifications
| Model | LS-RNG-0035 |
|---|---|
| Lit diameter (mm) | 132 |
| Height (mm) | 35 |
| Outer diameter (mm) | 151.2 |
| Inner diameter (mm) | 42 |
| Viewport diameter (mm) | 42 |
| Voltage | 24 VDC |
| Connector | 5 Pin M12 Male A-Coded |
| Connection at light | Connectorized |
| Driver included | Included |
| Operating modes | Overcurrent Strobe, Overcurrent Strobe - Dimmable |
| Operating temperature | -10 to 40 °C |
| IP rating | IP50 |
| Housing | Aluminum |
| Mounting | T-Slot Channels, Tapped Holes |
| Collimated | Not Collimated |
| Daisy chain | No |
| Diffused | Not Diffused |
| Direct connect | No |
| Driver nomenclature | SVL OverDrive Driver |
| Maximum current (overcurrent strobe) (ma) | 4000 / 65000 (by configuration) |
| Maximum duty cycle (%) | 10 |
| Maximum input power overcurrent strobe (w) | 96 / 156 (by configuration) |
| Maximum overcurrent strobe duration (ms) | 125 |
| Maximum overcurrent strobe duty cycle (%) | 10 |
| Maximum overcurrent strobe frequency (hz) | 4000 |
| Maximum overcurrent strobe latency (us) | 6 |
| Minimum overcurrent strobe duration (us) | 30 |
| NPN trigger current (ma) | 14 / 15 (by configuration) |
| NPN trigger voltage (v) | < 1 VDC |
| PNP trigger current (ma) | 17.6 / 20 (by configuration) |
| PNP trigger voltage (v) | 3.3-24 VDC / 4-24 VDC (by configuration) |
| Storage temperature | -20 to 70 °C |
| Compliance | CE, IEC 62471, RoHS |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guide
