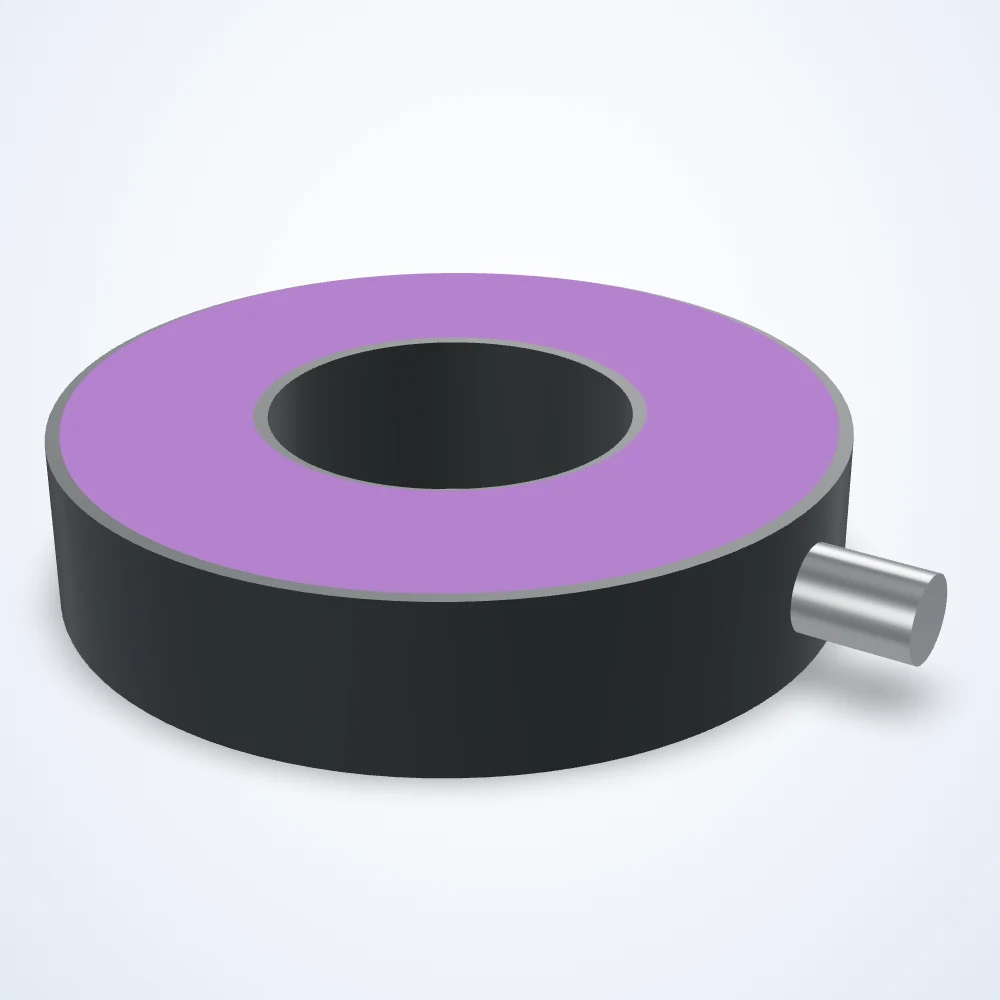

Rendered illustration: the actual product may differ in appearance.
Ring lights
Ring light, 109.6 mm (LS-RNG-0006)
Model LS-RNG-0006
LED ring light that mounts around the lens for even, on-axis illumination of the field of view. 24 VDC supply. Choose colour, lens / beam angle, connector, driver location, strobe trigger input below (20 configurations) and request a quote.
Specifications
| Model | LS-RNG-0006 |
|---|---|
| Lit diameter (mm) | 109.6 |
| Height (mm) | 24 |
| Outer diameter (mm) | 109.6 |
| Inner diameter (mm) | 50 |
| Viewport diameter (mm) | 50 |
| Voltage | 24 VDC |
| Connection at light | Hardwired |
| Cable length (mm) | 2000 |
| Driver included | Included |
| Intensity control | Analog Voltage |
| Operating modes | Constant On, Constant On – Dimmable, Overcurrent Strobe, Overcurrent Strobe - Dimmable |
| Operating temperature | up to 60 °C |
| IP rating | IP69K |
| Housing | Aluminum |
| Mounting | Tapped Holes |
| Collimated | Not Collimated |
| Daisy chain | No |
| Diffused | Not Diffused |
| Direct connect | No |
| Driver nomenclature | ES / iCS4 - I4 (by configuration) |
| Max overcurrent strobe current | 8000 mA |
| Max overcurrent strobe input power | 150 W |
| Maximum constant on current (ma) | 600 |
| Maximum current (overcurrent strobe) (ma) | 8000 |
| Maximum duty cycle (%) | 100 |
| Maximum input power constant on (w) | 14.4 |
| Maximum input power overcurrent strobe (w) | 150 |
| Maximum overcurrent strobe frequency (hz) | 2000 |
| Maximum overcurrent strobe latency (us) | 20 |
| NPN trigger voltage (v) | < 1 VDC |
| PNP trigger current (ma) | 5 |
| PNP trigger voltage (v) | 2.5-30 VDC / 4-24 VDC (by configuration) |
| Polarized | Not Polarized |
| Compliance | CE, IEC 62471, RoHS |
