Shadowless lights

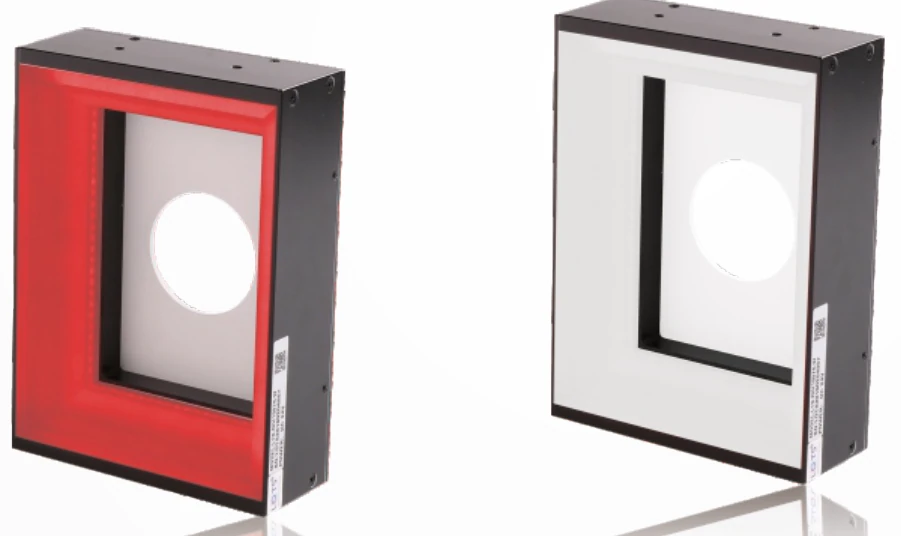

Square shadowless light (RIH) (LS-RIH232140)
Model LS-RIH232140
Square shadowless light with vertically distributed LEDs, high uniformity and high luminance, for workpieces that need a balanced surface; reduces reflected light and flare.
Features
- LEDs distributed vertically
- High uniformity, high luminance
- For workpieces that need a balanced surface
- Reduces reflected light and flare
- Customizable: Length and width, Colour & colour temperature, Cable length, Installation method
- UV & IR versions can be customized as required
Specifications
| Model | LS-RIH232140 |
|---|---|
| Voltage | 24 V |
| Min. size | 156 mm x 113 mm |
| Max. size | 200 mm x 180 mm |
| Recommended working distance | 10~100 mm |
| FOV | 1~150 mm |
| Colour temperature of white | 6600 K |
| Cable length (drawing) | 500 mm |
| Operating temperature | 0-50 °C |
| Operating humidity | 20-85% (non-condensing) |
| Life-span | 50000 h (to 50% of factory default luminance) |
| Adapted controllers | Strobe controller, analog controller, digital controller |
| Extension cable options | PVC extension cable (high flexibility, bending and high-temperature resistant, for use inside equipment); high-flexibility extension cable (harder, more abrasion resistant, for drag-chain production lines) |
| Power (R) | 10.6W |
| Power (G/B/W) | 15.9W |
| Weight | 1178 g |
| Common model | N |
| Dimension drawing no. | 4 |
Applications
- Cigarette case surface inspection
- Integrated circuit material strap inspection
- Lead pin pitch inspection
- Integrated circuit character inspection
- Metal surface scratch inspection
- Imaging example: packing contour inspection (LS-RIH15075-W), obvious high-contrast contour
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the Square shadowless light (RIH) series
| Model | Size | Power | Colours | Price | Availability | |
|---|---|---|---|---|---|---|
| LS-RIH13294 | 20.2 W | $299.00 | 12 in stock | View | ||
| LS-RIH11075 | 12.5 W | $379.00 | 10 in stock | View | ||
| LS-RIH15075 | 14.4 W | $539.00 | 13 in stock | View |
