Representative photo of this series
Shadowless lights

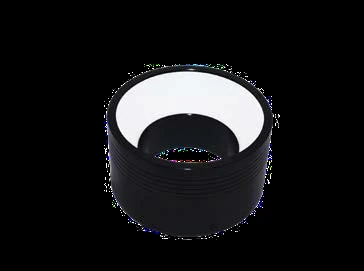

Ring-shaped shadowless light (LS-RIF8860)
Model LS-RIF8860
Ring-shaped light sources provide illumination from different angles, highlighting the three-dimensional information of objects and effectively solving the problem of shadows caused by angled illumination.
Features
- Shadowless diffused illumination
- Size can be customized according to different needs
Specifications
| Model | LS-RIF8860 |
|---|---|
| Voltage | 24 V DC (12 V on request) |
| Product name | Ring shadowless light |
| Number of lamp rows | 2 |
| Outer diameter (mm) | 88 |
| Inner diameter (mm) | 61 |
| Height (mm) | 37 |
| Power red (W) | 2.2 |
| Power white/blue/green (W) | 3.4 |
| Shipping weight | 0.35 kg |
Applications
- Connector pin positioning, QR code recognition
- PCB substrate inspection, electronic component inspection, appearance inspection
- LCD correction
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the Ring-shaped shadowless light (LS-RIF) series
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-RIF2610 | 26 mm dia. | 2.5 W | $69.00 | 20 in stock | View | |
| LS-RIF4218 | 42 mm dia. | 2.1 W | $89.00 | 17 in stock | View | |
| LS-RIF6638 | 66 mm dia. | 2.8 W | $139.00 | 24 in stock | View | |
| LS-RIF7042 | 70 mm dia. | 2.9 W | $149.00 | 20 in stock | View | |
| LS-RIF8036 | 80 mm dia. | 3.1 W | $169.00 | 13 in stock | View | |
| LS-RIF130110 | 130 mm dia. | 5.7 W | $299.00 | 20 in stock | View |
