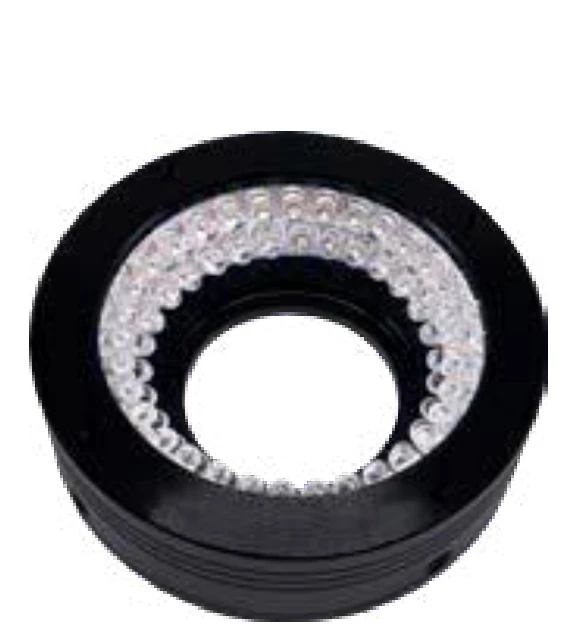

Ring light, 20 degree series (LS-R6020)
Model LS-R6020
Ring light sources provide illumination at different angles, highlighting the three-dimensional information of objects and effectively solving the problem of shadows caused by angled illumination (high-angle direct lighting, angle, number of rings).
Features
- Illumination at different angles highlights the three-dimensional information of objects
- Reduces shadow problems caused by angled illumination
- Size can be customized according to different needs
Specifications
| Model | LS-R6020 |
|---|---|
| Voltage | 24 V DC (12 V on request) |
| Illumination angle | 20 deg |
| Angle classification | 20 degree series |
| Number of lamp rows | 2 |
| Outer diameter (mm) | 60 |
| Inner diameter (mm) | 27 |
| Height (mm) | 18.5 |
| Power red (W) | 1.4 |
| Power white/blue/green (W) | 3.0 |
| Shipping weight | 0.25 kg |
Applications
- Connector pin positioning, QR code recognition
- PCB substrate inspection, electronic component inspection, appearance inspection
- LCD correction
