Ring lights

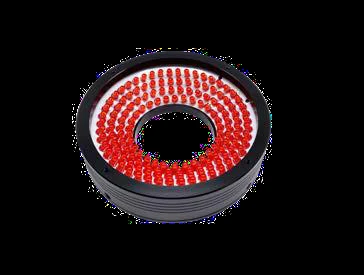

Ring light, 60 degree series (LS-R) (LS-R3660)
Model LS-R3660
Ring light sources provide illumination at different angles, highlighting the three-dimensional information of objects and effectively solving the problem of shadows caused by angled illumination (high-angle direct lighting, angle, number of rings).
Features
- Illumination at different angles highlights the three-dimensional information of objects
- Reduces shadow problems caused by angled illumination
- Size can be customized according to different needs
Specifications
| Model | LS-R3660 |
|---|---|
| Voltage | 24 V DC (12 V on request) |
| Illumination angle | 60 deg |
| Angle classification | 60 degree series |
| Number of lamp rows | 2 |
| Outer diameter (mm) | 36 |
| Inner diameter (mm) | 13 |
| Height (mm) | 15.5 |
| Power red (W) | 0.6 |
| Power white/blue/green (W) | 1.7 |
| Shipping weight | 0.20 kg |
Applications
- Connector pin positioning, QR code recognition
- PCB substrate inspection, electronic component inspection, appearance inspection
- LCD correction
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the Ring light, 60 degree series (LS-R) series
| Model | Size | Power | Colours | Price | Availability | |
|---|---|---|---|---|---|---|
| LS-R4260 | 42 mm dia., 60° | 1.7 W | $79.00 | 17 in stock | View | |
| LS-R5260 | 52 mm dia., 60° | 3.8 W | $99.00 | 22 in stock | View | |
| LS-R5260-38HOLE | 52 mm dia., 60° | 3.8 W | $99.00 | 22 in stock | View | |
| LS-R6760 | 67 mm dia., 60° | 3.6 W | $119.00 | 21 in stock | View | |
| LS-R7460 | 74 mm dia., 60° | 4.1 W | $129.00 | 21 in stock | View | |
| LS-R9060 | 90 mm dia., 60° | 5.6 W | $149.00 | 20 in stock | View | |
| LS-R12060 | 120 mm dia., 60° | 11 W | $189.00 | 22 in stock | View | |
| LS-R15060 | 150 mm dia., 60° | 7.8 W | $229.00 | 21 in stock | View | |
| LS-R18060 | 180 mm dia., 60° | 6.1 W | $269.00 | 22 in stock | View |
