Compact R series fixed industrial barcode reader (R27)

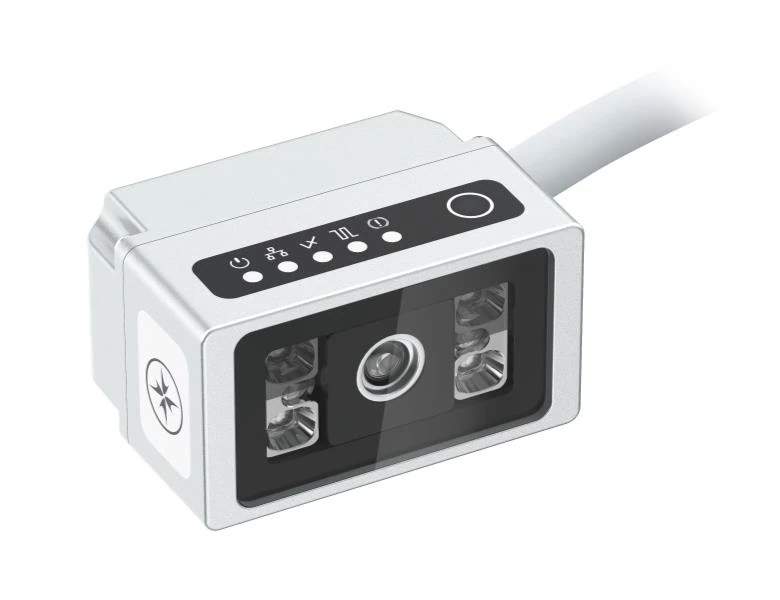

Representative photo of this series
Fixed code readers
Compact R series fixed industrial barcode reader, 1.0 MP (LS-R275-A)
Model LS-R275-A
Compact fixed industrial barcode reader with an integrated machine vision algorithm engine for powerful, stable decoding, OneClick debugging and an extra small body whose length and width are less than 1/3 of a standard business card.
Features
- Integrated advanced machine vision algorithm engine; powerful and stable decoding
- OneClick debugging: one-click trigger, fast and accurate decoding; autofocus, parameter adjustment, detection
- Extra small size for deployment in small spaces on the production line
- New geometric optical design
- Multiple ROI configurations
- DSP performance optimization
- Super resolution algorithm
- Fully transparent tempered window
Specifications
| Model | LS-R275-A |
|---|---|
| Support barcode | 2D: Datamatrix (ECC200), QR Code; 1D: Code39, Code93, Code128, EAN13, EAN8, UPC-E, interleaved 2 of 5 |
| Image sensor | 1280*800 Pixel Global Shutter CMOS |
| Max acquisition frame rate | 120FPS |
| Sight | 2 green LED dot aiming |
| Communication interface | Ethernet@100Mbps, RS232 |
| Supported communication protocols | TCP/IP, FTP, Profinet IO, EIP, RS232, Modbus TCP |
| Input/Output IO | 2 isolated IO inputs + 2 isolated IO outputs (NPN and PNP types available) |
| Barcode level verification | ISO/IEC 15415, ISO/IEC 16022, ISO/IEC TR29158 (AIM DPM-1-2006) |
| Powered by | 24V DC |
| Ambient temperature | 10~50°C |
| Protection level | IP65 |
| Certification | CE, FCC, RoHS |
| Lighting system | Built-in 4 high-power red LED lights (2 regular light illumination + 2 polarized light illumination) |
| Lens | 12mm large aperture fixed focus lens + liquid lens |
| Focus mode | High-speed autofocus |
| Typical reading depth of field | 20~1000mm |
| View field | 23° horizontally, 15° vertically |
| Focal length | 12 |
| Resolution | 1280 x 800 |
| Shutter | Global |
| Voltage | 24 V DC |
| Shipping weight | 0.59 kg |
Applications
- 3C electronics
- Automobile manufacturing (DPM part traceability)
- Lithium battery new energy
- Semiconductor
- SMT / PCB processing
