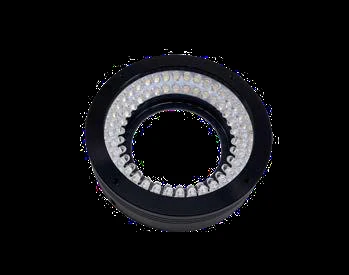

Ring light, 30 degree series (LS-R) (LS-R15030)
Model LS-R15030
Ring light sources provide illumination at different angles, highlighting the three-dimensional information of objects and effectively solving the problem of shadows caused by angled illumination (high-angle direct lighting, angle, number of rings).
Features
- Illumination at different angles highlights the three-dimensional information of objects
- Reduces shadow problems caused by angled illumination
- Size can be customized according to different needs
Specifications
| Model | LS-R15030 |
|---|---|
| Voltage | 24 V DC (12 V on request) |
| Illumination angle | 30 deg |
| Angle classification | 30 degree series |
| Number of lamp rows | 4 |
| Outer diameter (mm) | 150 |
| Inner diameter (mm) | 105 |
| Height (mm) | 30 |
| Power red (W) | 4.8 |
| Power white/blue/green (W) | 11 |
| Shipping weight | 0.80 kg |
Applications
- Connector pin positioning, QR code recognition
- PCB substrate inspection, electronic component inspection, appearance inspection
- LCD correction
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the Ring light, 30 degree series (LS-R) series
| Model | Size | Power | Colours | Price | Availability | |
|---|---|---|---|---|---|---|
| LS-R4230 | 42 mm dia., 30° | 1.8 W | $79.00 | 19 in stock | View | |
| LS-R5030 | 50 mm dia., 30° | 3.8 W | $89.00 | 17 in stock | View | |
| LS-R7230 | 72 mm dia., 30° | 4 W | $119.00 | 20 in stock | View | |
| LS-R7430 | 74 mm dia., 30° | 3.9 W | $129.00 | 20 in stock | View | |
| LS-R9030 | 90 mm dia., 30° | 4.8 W | $149.00 | 18 in stock | View | |
| LS-R10230 | 102 mm dia., 30° | 8 W | $169.00 | 23 in stock | View | |
| LS-R12030 | 120 mm dia., 30° | 10 W | $189.00 | 19 in stock | View | |
| LS-R18030 | 180 mm dia., 30° | 12.8 W | $269.00 | 19 in stock | View | |
| LS-R21030 | 210 mm dia., 30° | 14 W | $309.00 | 25 in stock | View |
