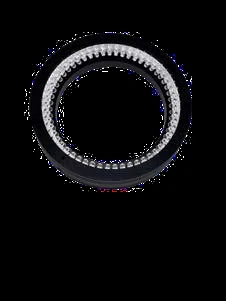

Ring light, 10 degree series (LS-R10010)
Model LS-R10010
Ring light sources provide illumination at different angles, highlighting the three-dimensional information of objects and effectively solving the problem of shadows caused by angled illumination (high-angle direct lighting, angle, number of rings).
Features
- Illumination at different angles highlights the three-dimensional information of objects
- Reduces shadow problems caused by angled illumination
- Size can be customized according to different needs
Specifications
| Model | LS-R10010 |
|---|---|
| Voltage | 24 V DC (12 V on request) |
| Illumination angle | 10 deg |
| Angle classification | 10 degree series |
| Number of lamp rows | 2 |
| Outer diameter (mm) | 100 |
| Inner diameter (mm) | 72 |
| Height (mm) | 21 |
| Power red (W) | 3 |
| Power white/blue/green (W) | 5.04 |
| Shipping weight | 0.35 kg |
Applications
- Connector pin positioning, QR code recognition
- PCB substrate inspection, electronic component inspection, appearance inspection
- LCD correction
