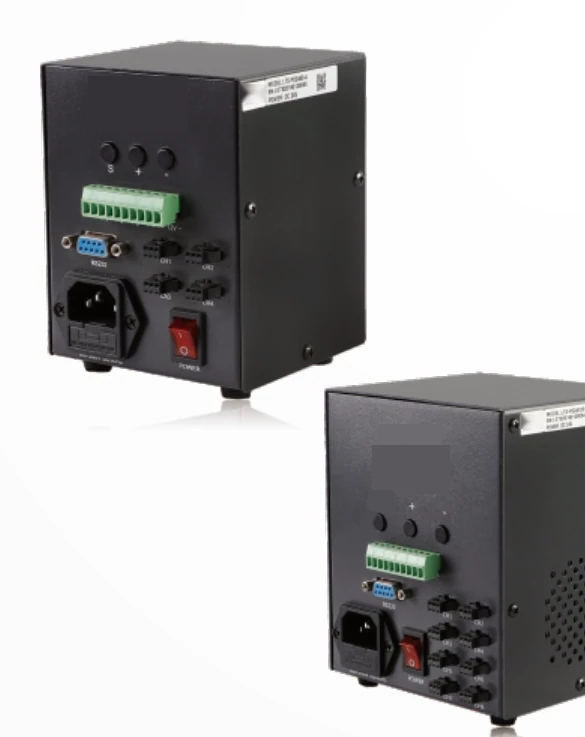

Digital controller, high cost-effective (PD), 8 ch, 120 W (LS-PD24120-8)
Model LS-PD24120-8
Digital controller: each channel controlled independently with high precision, digital display and button control, RS232 communication with PC, trigger input and power-off saving.
Features
- Each channel controlled independently with high precision
- Digital display, button control
- Communicates with PC by RS232
- Trigger input, fast response, high reliability
- Power off saving function
- High level trigger (5-24V)
- Trigger delay T1 <= 200us, T3 <= 200us
- H1 normal on / H0 normal closed modes set with the S button
Specifications
| Model | LS-PD24120-8 |
|---|---|
| Input voltage | AC 100-240V |
| Input frequency | 50/60Hz |
| Output voltage range | 0-24V |
| Luminance control method | manual adjust by button, PC remote adjustment |
| Luminance control mode | PWM adjust (PWM duty ratio) |
| Luminance control level | 256 level |
| Saving function | luminance kept when power off |
| External trigger voltage | 5-24V |
| Communication | RS232 serial port |
| Normal on/normal closed mode switch | change H mode by CH button (H1 normal on, H0 normal closed) |
| Mounting | DIN guide rail mounting base |
| Channels | 8 |
| Output voltage | 0-24V |
| One way max. output power | 60W |
| Total output power | 120W |
| External trigger support | Y |
| Addition output voltage | N/A |
| Shipping weight | 1.00 kg |
