Frame grabbers

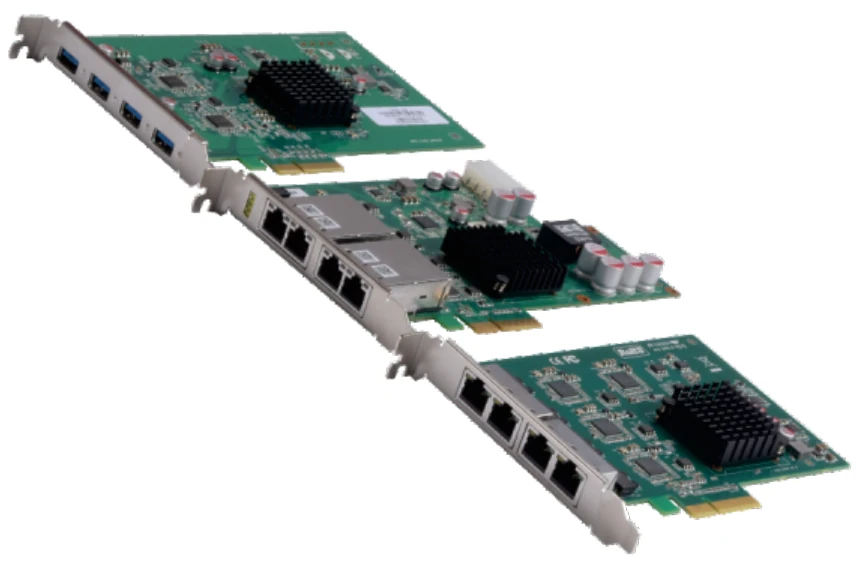

PCIE expansion card, USB3 (LS-PCIE4-PORTPOEGIGABITNETWORKCARD)
Model LS-PCIE4-PORTPOEGIGABITNETWORKCARD
PCI Express x4 expansion cards with 4 interfaces: a USB3.0 card and GigE network cards supporting 9KB jumbo frames and multiple cards with multiple cameras; Windows 7/8/10 and Linux supported.
Features
- Bus interface: PCI Express x4 Gen2
- Interface quantity: 4 interfaces
- GigE network card: supports 9KB jumbo frames and multiple cards and multiple cameras
- GigE network card: compatible slot PCI-E 16x/8x/4x
- USB interface: 4x USB3.0, compatible with USB2.0/1.1/1.0
- USB connector: 4x USB3.0 type-A on the front panel (fixed with M2 screw)
- The system supports Windows 7/8/10 and Linux
Specifications
| Model | LS-PCIE4-PORTPOEGIGABITNETWORKCARD |
|---|---|
| Bus interface | PCI Express x4 Gen2 |
| Ports | 4 |
| Internet interface | 4x 10/100/1000M bps RJ45 network interface; full duplex, half duplex intelligent detection and adaptation |
| Chip | Intel i210AT |
| Function | Ethernet power supply, compatible with IEEE 802.3af/at; supports 9KB jumbo frames; supports multi card and multi camera; PoE power management; PoE protection |
| Compatible slots | PCI-E 16x/8x/4x |
| Network environment | Gigabit and below network |
| Indicator light | ACT: flashes when the port is transferring data; link: steady on indicates the link is normal; POE: steady on indicates the external equipment is powered normally |
| Power requirements | Using 4-pin power connector, maximum 100W PoE power (+12V@8A); using PCIe slot, maximum 20W PoE power ([email protected]) |
| Operating environment | Operating temperature: 0°C~70°C; storage temperature: -40°C~70°C; relative humidity: 5%~90%, non condensing |
| System support | Windows XP/7/8/10, Linux |
| Product size | 168 mm x 112 mm (width x length) |
| Channels | 4 |
| Shipping weight | 0.27 kg |
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
